Description
ART 715-A MK4 is a unique product in its category. The professional compression driver with custom designed dome and high power voice coil offers unique vocal clarity and constant sound coverage. The 15” woofer offers an extremely linear response and a precise low frequency control. The transducers are produced using the most advanced assembly technologies. The two channel amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalization, phase control, soft limiting and transducers protection.
- 130 dB Max SPL
- Two Channel Amplifier of 1400 WATT
- Innovative DSP Processing
- 1″ Compression Driver, 1.75″ v.c.
- 15″ Woofer
- 90°x60°, wide dispersion constant directivity horn
- FiRPHASE Technology
Acoustical specifications
- FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz
- MAX SPL @ 1M: 130 dB
- HORIZONTAL COVERAGE ANGLE: 90°
- VERTICAL COVERAGE ANGLE:60°
Transducers
- COMPRESSION DRIVER: 0”, 1.75” v.c
- WOOFER: 15”, 2.5” v.c
Input/Output section
- INPUT SIGNAL: bal/unbal
- INPUT CONNECTORS: XRL, Jack
- OUTPUT CONNECTORS: XLR
- INPUT SENSITIVITY: -2 dBu/+4 dBu
- INPUT SENSITIVITY: -32 dBu
Processor section
- CROSSOVER FREQUENCIES: 1600 Hz
- PROTECTIONS: Thermal, RMS
- LIMITER: Soft Limiter
- CONTROLS: Volume, Boost, Mic/Line
Power section
- TOTAL POWER: 1400 W Peak, 700 W RMS
- HIGH FREQUENCIES: 400 W Peak, 200 W RMS
- LOW FREQUENCIES: 1000 W Peak, 500 W RMS
- COOLING: Convection
- CONNECTIONS: VDE
Standard compliance
- CE MARKING: Yes
Physical specifications
- CABINET/CASE MATERIAL: PP Composite
- HARDWARE: 2 x M10

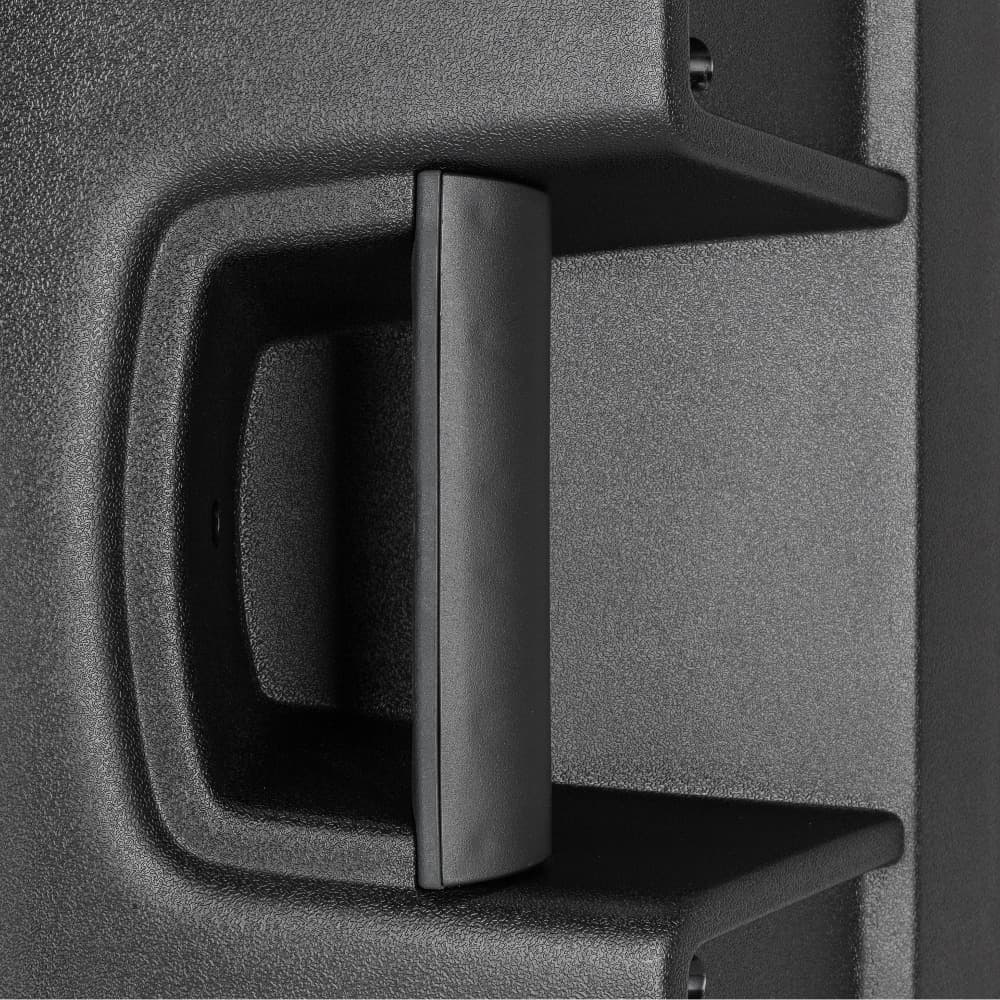

- HANDLES: 1 Top, 2 Side
- POLE MOUNT/CAP: Yes
- GRILLE: Steel
- COLOR: Black
Size
- HEIGHT: 708 mm / 27.87 inches
- WIDTH: 437 mm / 17.2 inches
- DEPTH: 389 mm / 15.31 inches
- WEIGHT: 6 kg / 43.21 lbs
Shipping informations
- PACKAGE HEIGHT: 750 mm / 29.53 inches
- PACKAGE WIDTH: 500 mm / 19.69 inches
- PACKAGE DEPTH: 440 mm / 17.32 inches
- PACKAGE WEIGHT: 23 kg / 50.71 lbs
