Description

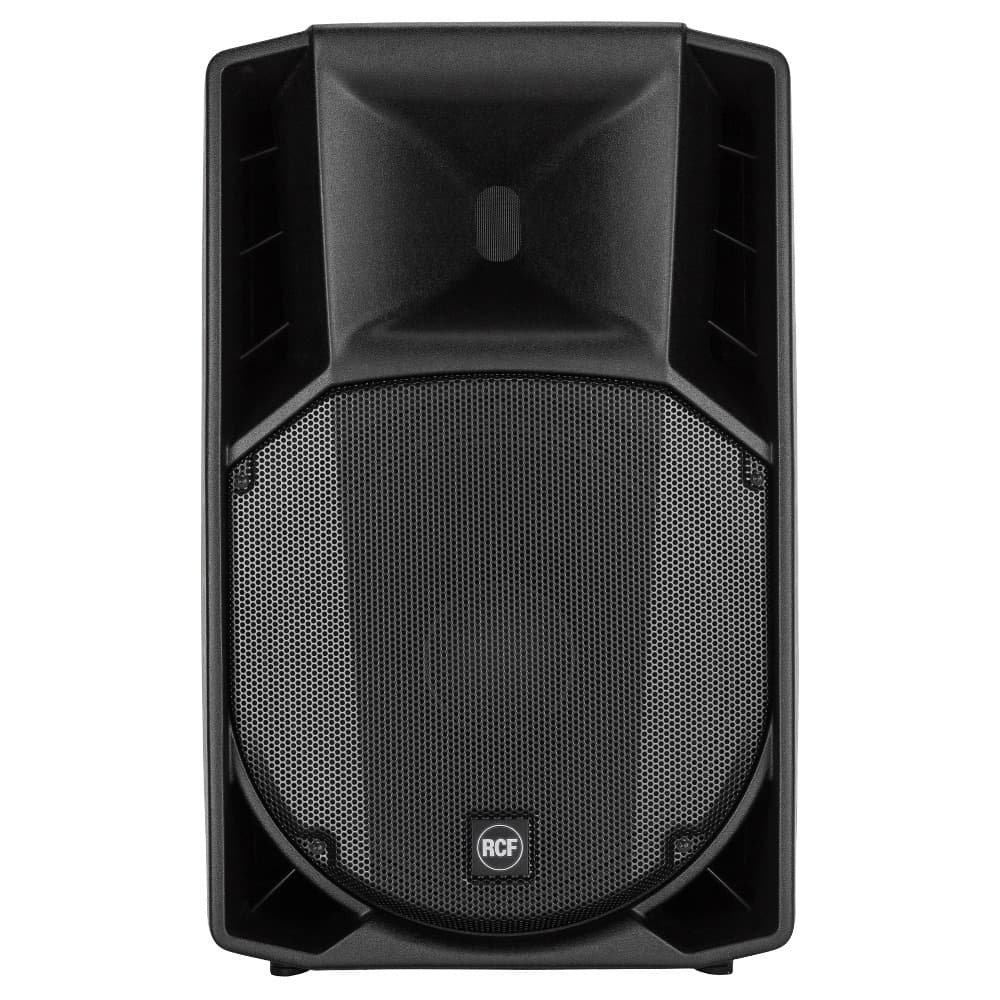

The ART 745-A MK4 is the flagship speaker in its category. The titanium dome, 4.0” voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections
- 133 dB Max SPL
- 1400 WATT 2-way peak power
- Innovative DSP Processing
- 1.4″ Titanium Compression Driver, 4.0″ v.c. Neodimium
- 15″ Neodimium Woofer
- 650 Hz crossover point for perfect vocal reproduction
- 90°x60°, wide dispersion constant directivity horn
- FiRPHASE Technology
Acoustical specifications
- FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz
- MAX SPL @ 1M: 133 dB
- HORIZONTAL COVERAGE ANGLE: 90°
- VERTICAL COVERAGE ANGLE: 60°
Transducers
- COMPRESSION DRIVER: 1 x 1.4” neo, 4.0” v.c
- WOOFER: 15” neo, 3.5” v.c

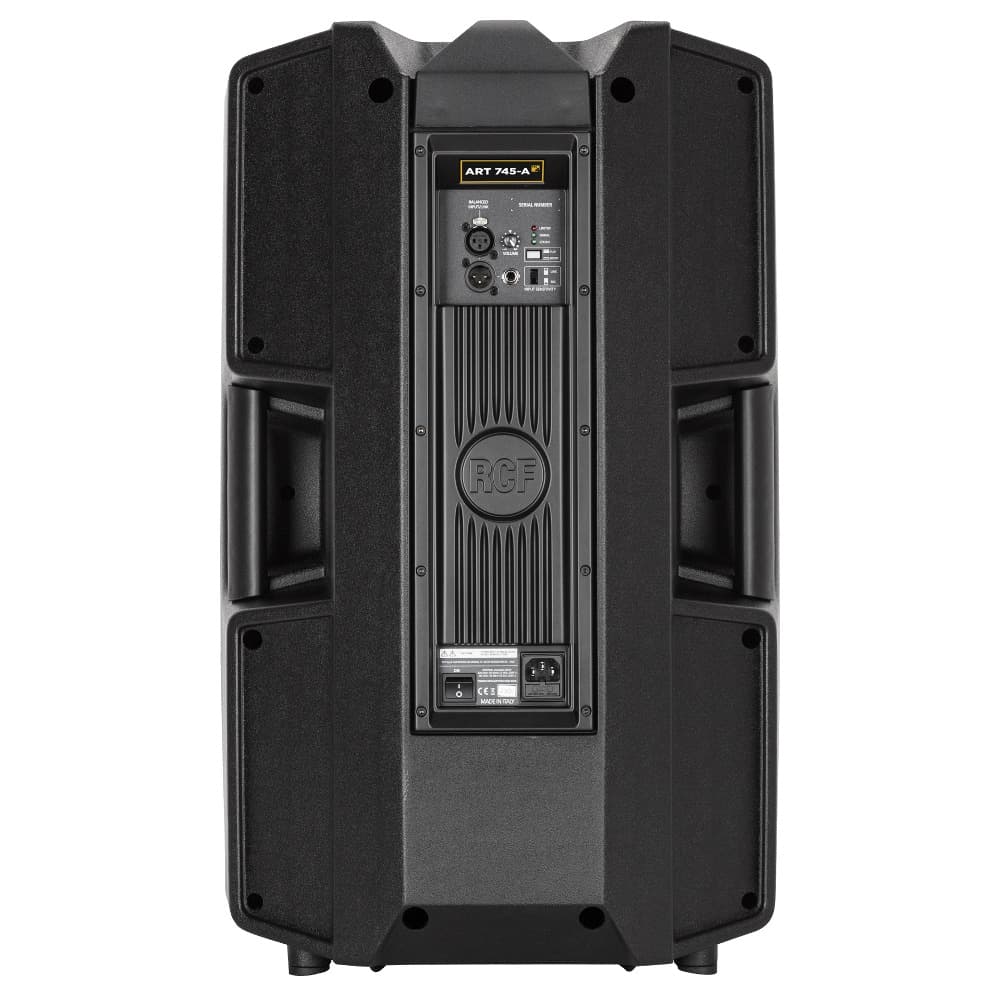

Input/Output section
- INPUT SIGNAL: bal/unbal
- INPUT CONNECTORS:XLR, Jack
- OUTPUT CONNECTORS: XLR
- INPUT SENSITIVITY: -2 dBu/+4 dBu
- INPUT SENSITIVITY: -32 dBu
Processor section
- CROSSOVER FREQUENCIES:650 Hz
- PROTECTIONS: Thermal, RMS
- LIMITER: Soft Limiter
- CONTROLS: Volume, Boost, Mic/Line
Power section
- TOTAL POWER: 1400 W Peak, 700 W RMS
- HIGH FREQUENCIES: 400 W Peak, 200 W RMS
- LOW FREQUENCIES: 1000 W Peak, 500 W RMS
- COOLING: Convection
- CONNECTIONS:VDE
Standard compliance
- CE MARKING: Yes
Physical specifications
- CABINET/CASE MATERIAL: PP Composite
- HARDWARE: 2 x M10
- HANDLES: 1 Top, 2 Side
- POLE MOUNT/CAP: Yes
- GRILLE: Steel
- COLOR: Black
Size
- HEIGHT: 708 mm / 27.87 inches
- WIDTH: 437 mm / 17.2 inches
- DEPTH: 389 mm / 15.31 inches
- WEIGHT: 8 kg / 41.45 lbs
Shipping informations
- PACKAGE HEIGHT: 750 mm / 29.53 inches
- PACKAGE WIDTH: 500 mm / 19.69 inches
- PACKAGE DEPTH: 440 mm / 17.32 inches
- PACKAGE WEIGHT: 22 kg / 48.5 lbs
