Description

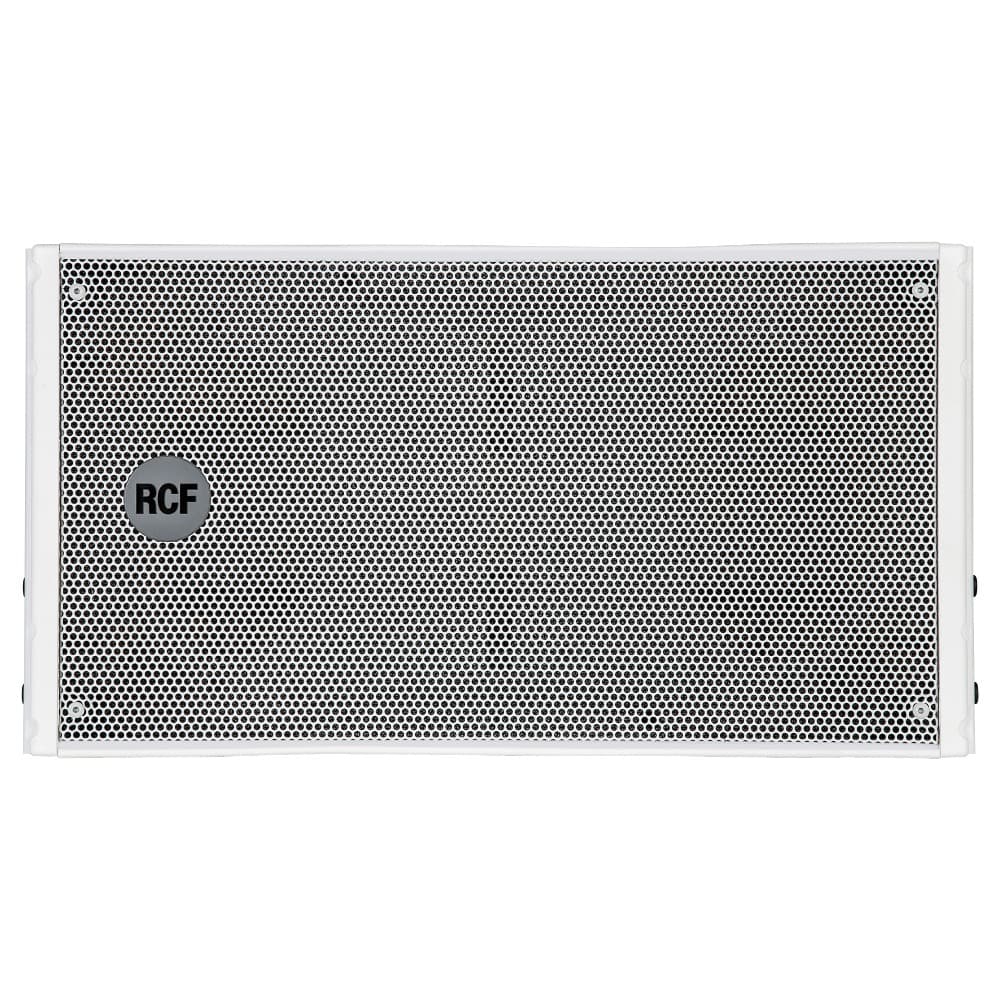

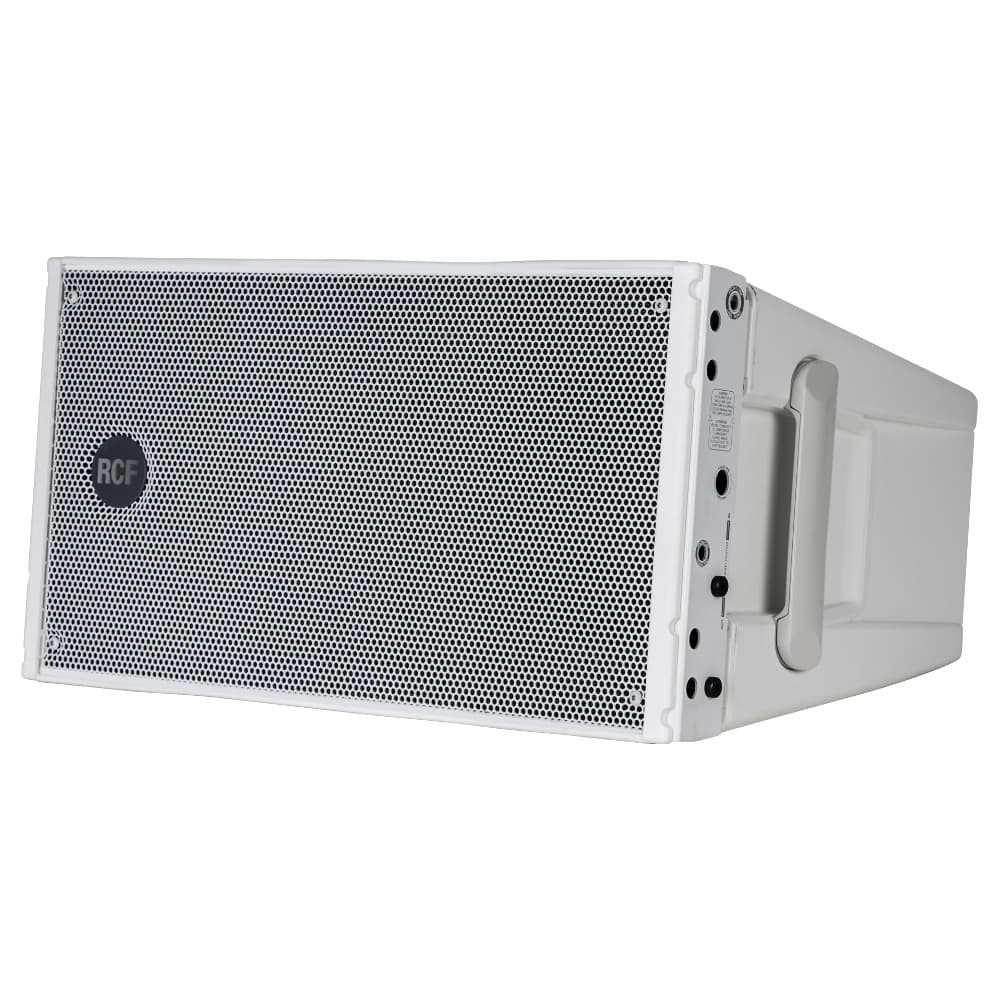

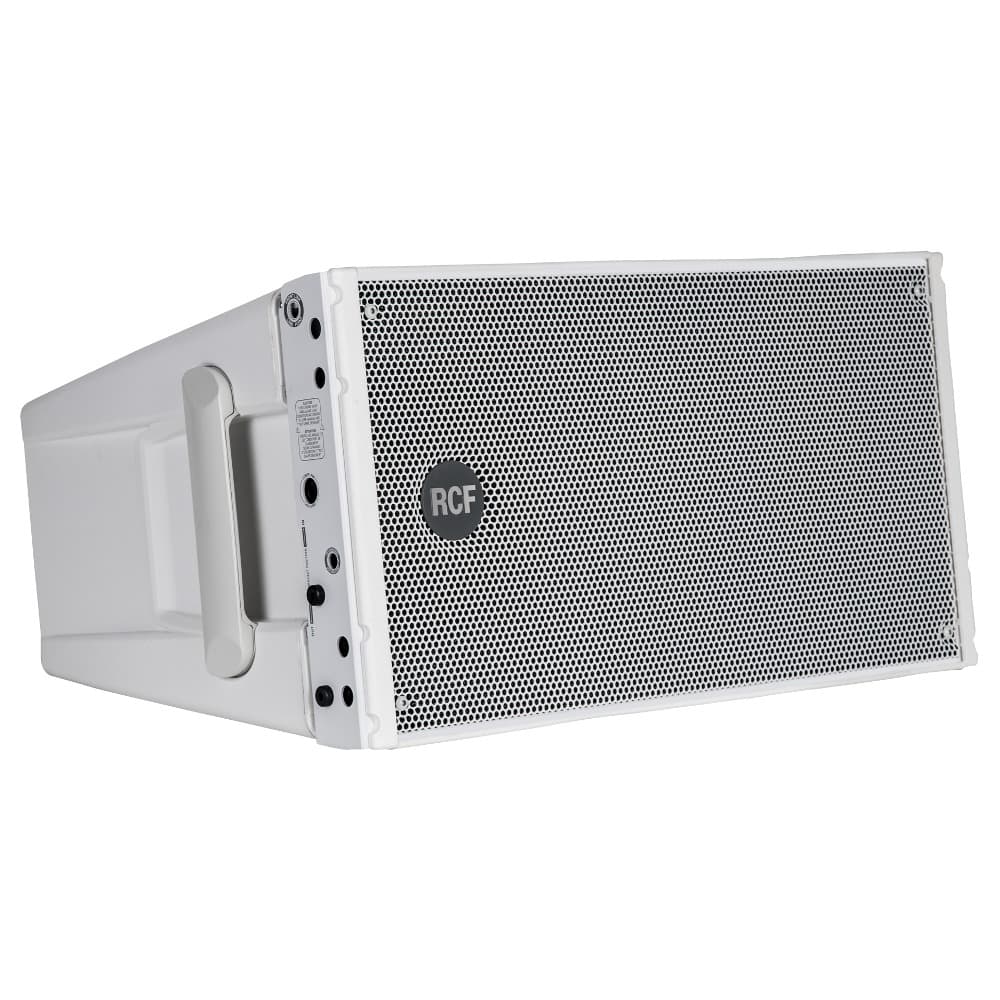

The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.
- 1400 Watt Peak power – 700 Watt RMS
- 133 dB max SPL
- 65 Hz 20 kHz frequency response
- 2 x 8″ Woofers
- 1 x 2″ Compression Driver
- DSP controlled Input section with selectable presets
- Tour grade safe and solid variable mechanics
- Composite PP enclosure structurally wooden reinforced
Acoustical specifications
- FREQUENCY RESPONSE: 65 Hz ÷ 20000 Hz
- MAX SPL @ 1M: 133 dB
- HORIZONTAL COVERAGE ANGLE: 100°
- VERTICAL COVERAGE ANGLE: 15°
Transducers
- COMPRESSION DRIVER: 1 x 2.0”, 2.5” v.c
- WOOFER: 2 x 8”, 2.0” v.c

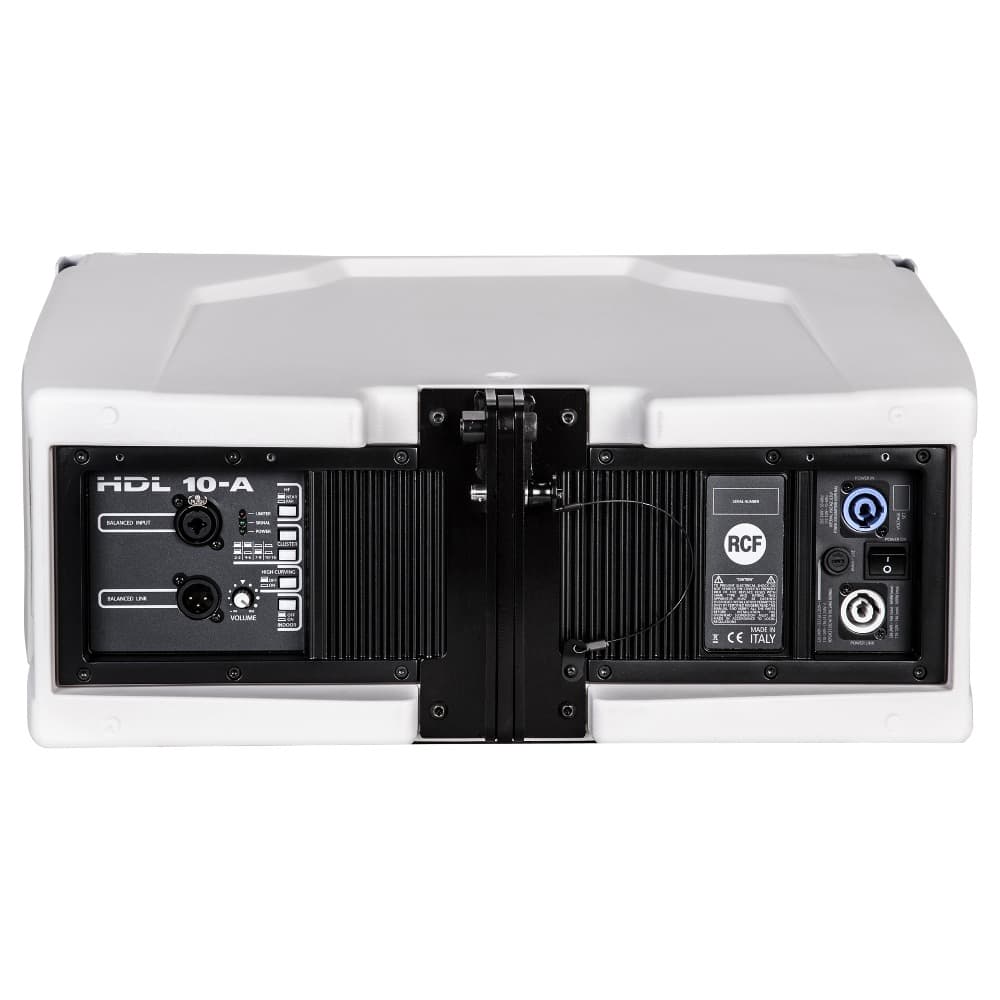

Input/Output section
- INPUT SIGNAL: bal/unbal
- INPUT CONNECTORS: XLR
- OUTPUT CONNECTORS: XLR
- INPUT SENSITIVITY: -2 dBu/+4 dBu
Processor section
- CROSSOVER FREQUENCIES: 800 Hz
- PROTECTIONS: Thermal, RMS
- LIMITER: Soft Limiter
- CONTROLS: Cluster, HF, High curving, Indoor
Power section
- TOTAL POWER: 1400 W Peak, 700 W RMS
- HIGH FREQUENCIES: 400 W Peak, 200 W RMS
- LOW FREQUENCIES: 1000 W Peak, 500 W RMS
- COOLING: Convection
- CONNECTIONS: Powercon IN/OUT
Standard compliance
- CE MARKING: Yes
Physical specifications
- CABINET/CASE MATERIAL: PP Composite
- HARDWARE: Rigging flyware
- HANDLES: 2 side
- GRILLE: Steel
- COLOR: White
Size
- HEIGHT: 294 mm / 11.57 inches
- WIDTH: 569 mm / 22.4 inches
- DEPTH: 434 mm / 17.09 inches
- WEIGHT: 20.4 kg / 44.97 lbs
Shipping informations
- PACKAGE HEIGHT: 375 mm / 14.76 inches
- PACKAGE WIDTH: 650 mm / 25.59 inches
- PACKAGE DEPTH: 500 mm / 19.69 inches
- PACKAGE WEIGHT: 23 kg / 50.71 lbs
