Description

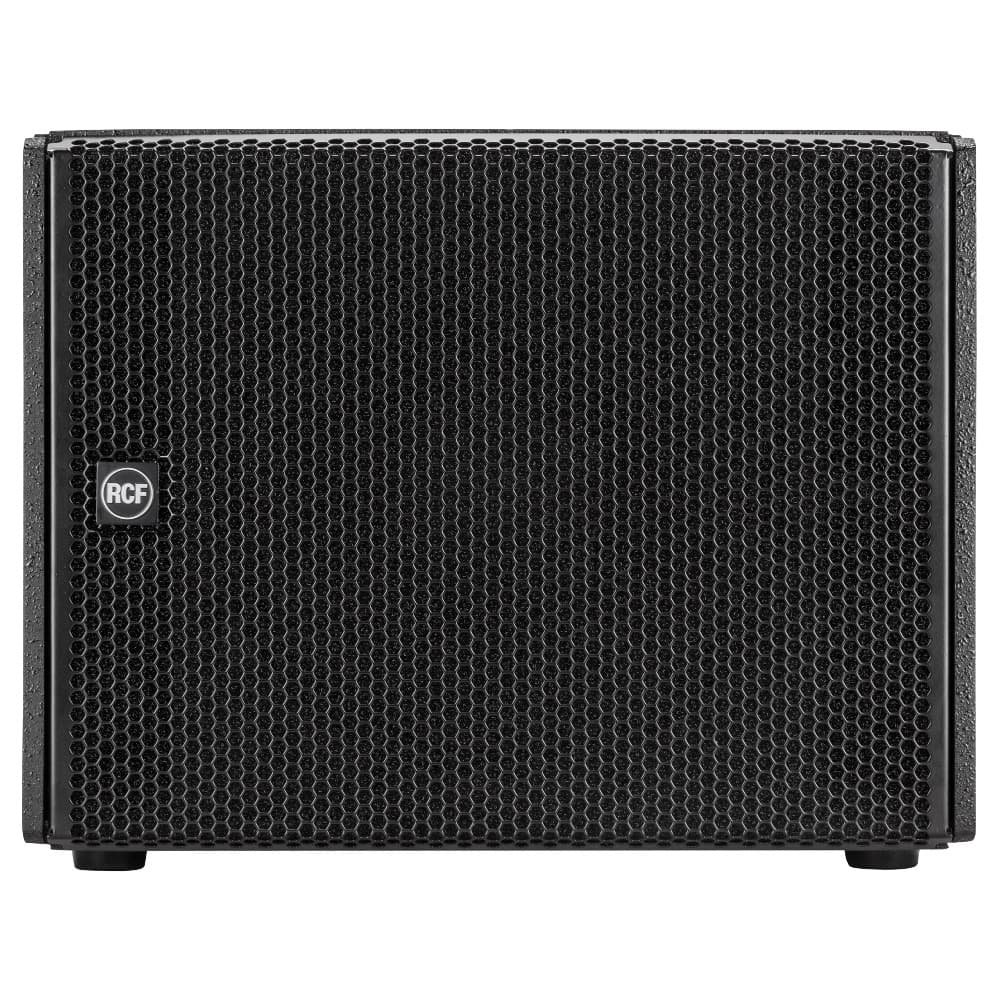

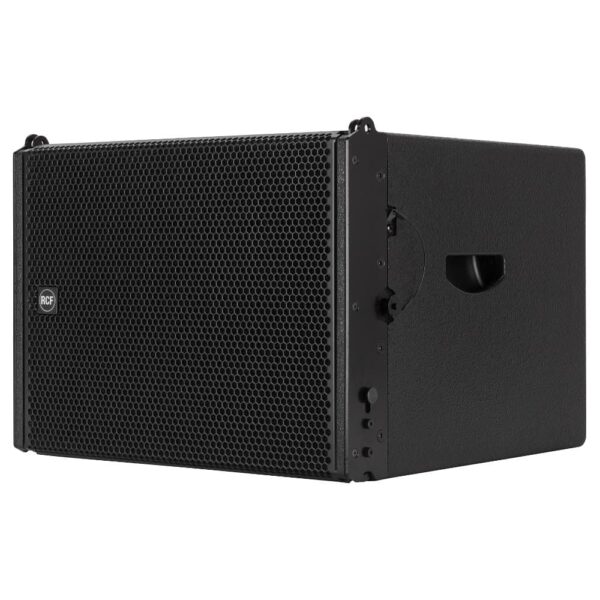

The HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12” woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.
- 1400 Watt Peak power – 700 Watt RMS
- 131 dB max SPL
- 40 Hz – 120 Hz frequency response
- 1 x 12″ Woofer
- Stereo crossover
- Switchable crossover frequencies
- Designed to compliment the HDL 6-A speaker system
- Polarity reverse switch
Acoustical specifications
- FREQUENCY RESPONSE: 40 Hz ÷ 120 Hz
- MAX SPL @ 1M: 131 dB
Transducers

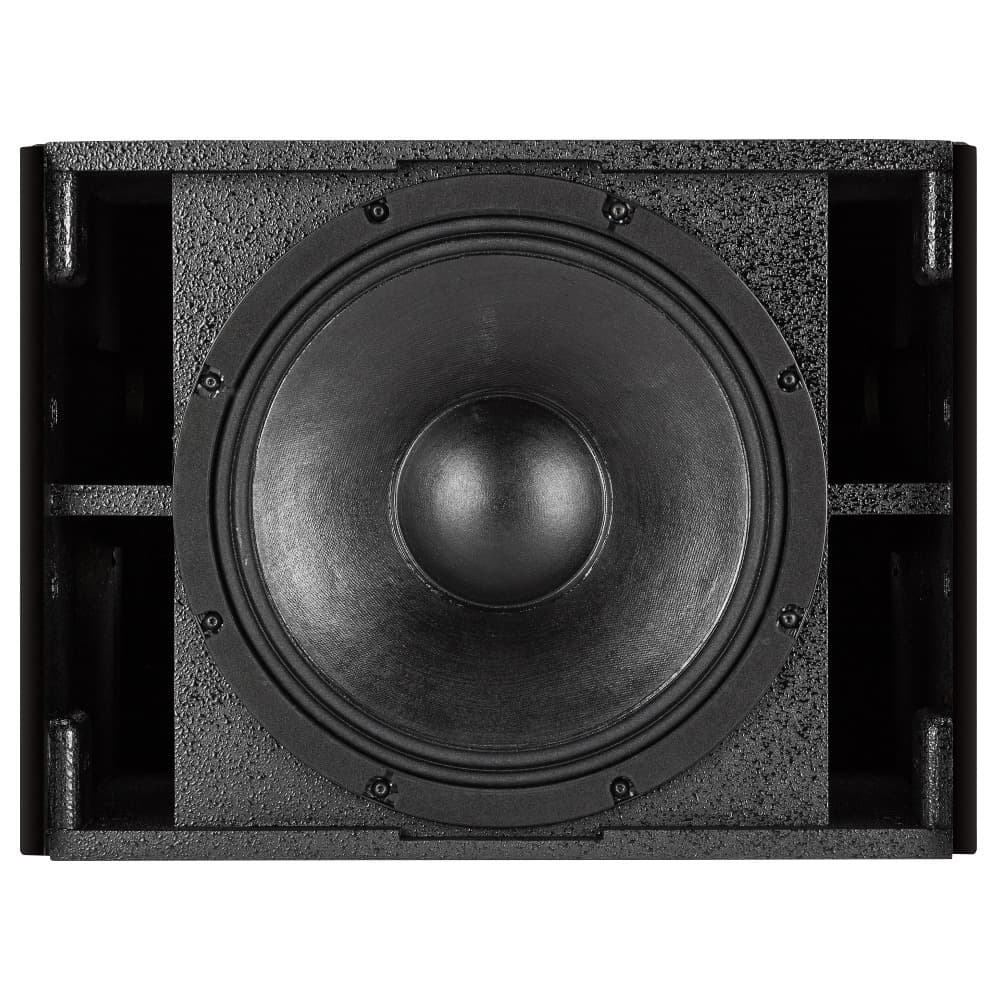

- WOOFER: 12”, 3.0” v.c

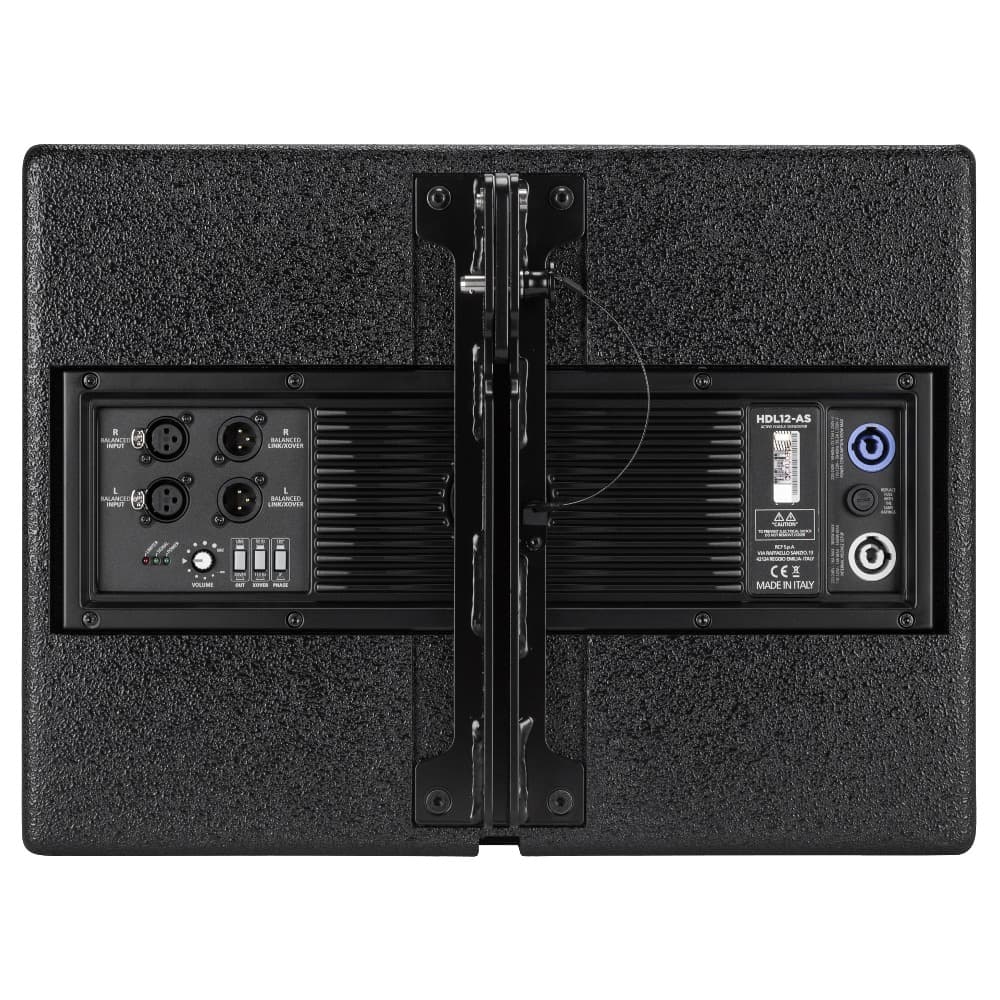

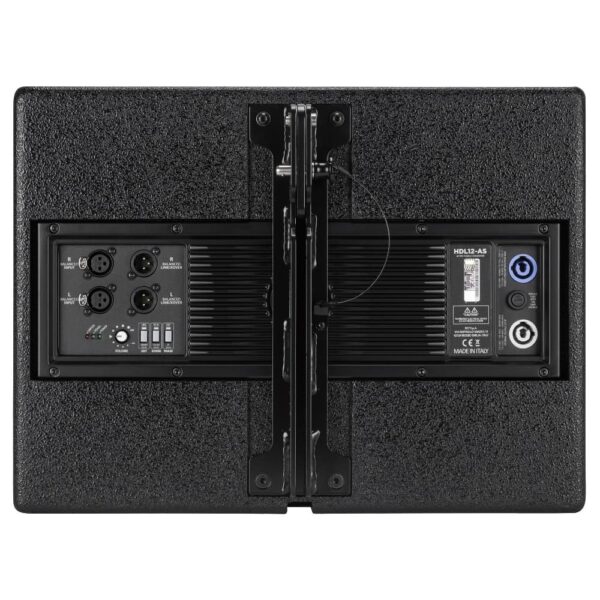

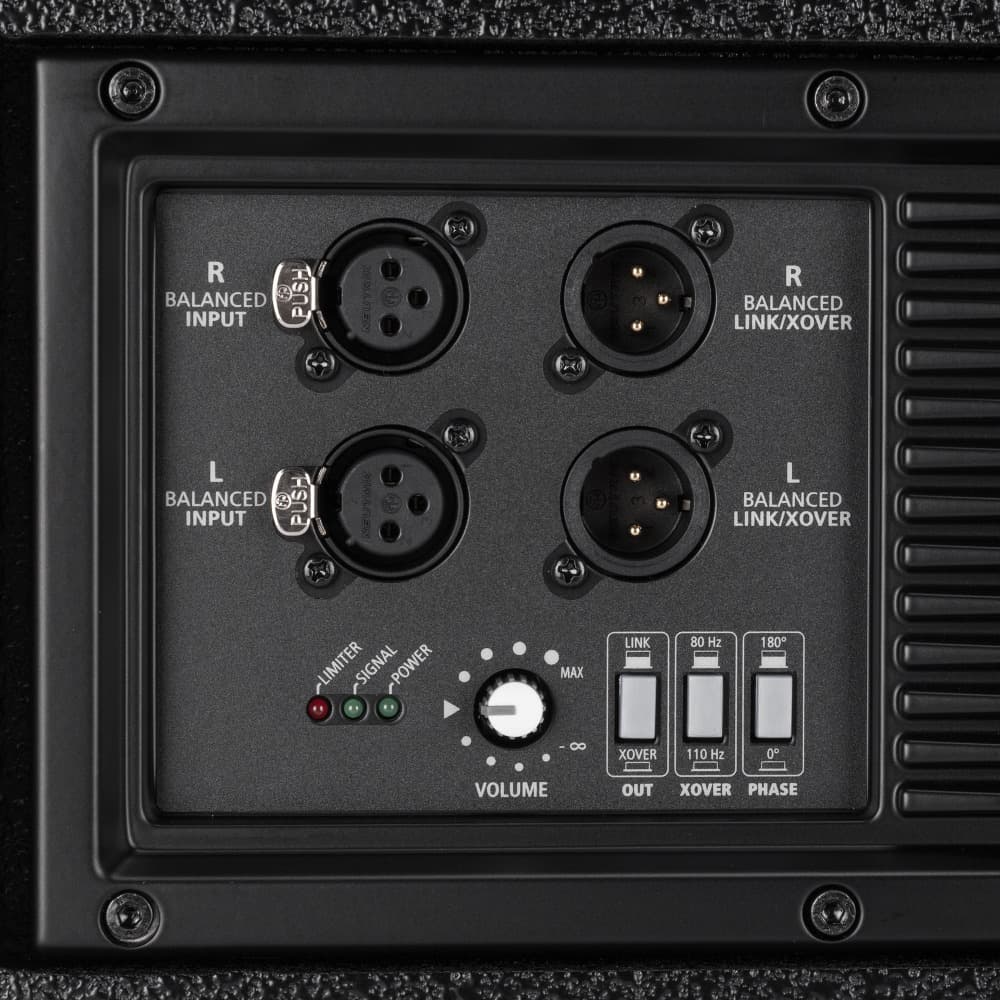

Input/Output section
- INPUT SIGNAL: bal/unbal
- INPUT CONNECTORS: XLR
- OUTPUT CONNECTORS: XLR
- INPUT SENSITIVITY: -2 dBu/+4 dBu
Processor section
- HI-PASS FREQUENCIES: 40Hz
- LOW-PASS FREQUENCIES: 80Hz, 110Hz
- PROTECTIONS: Thermal, RMS
- LIMITER: Soft Limiter
- CONTROLS: Volume, EQ, Phase, Xover
Power section
- TOTAL POWER: 1400 W Peak, 700 W RMS
- LOW FREQUENCIES: 1400 W Peak, 700 W RMS
- COOLING: Convection

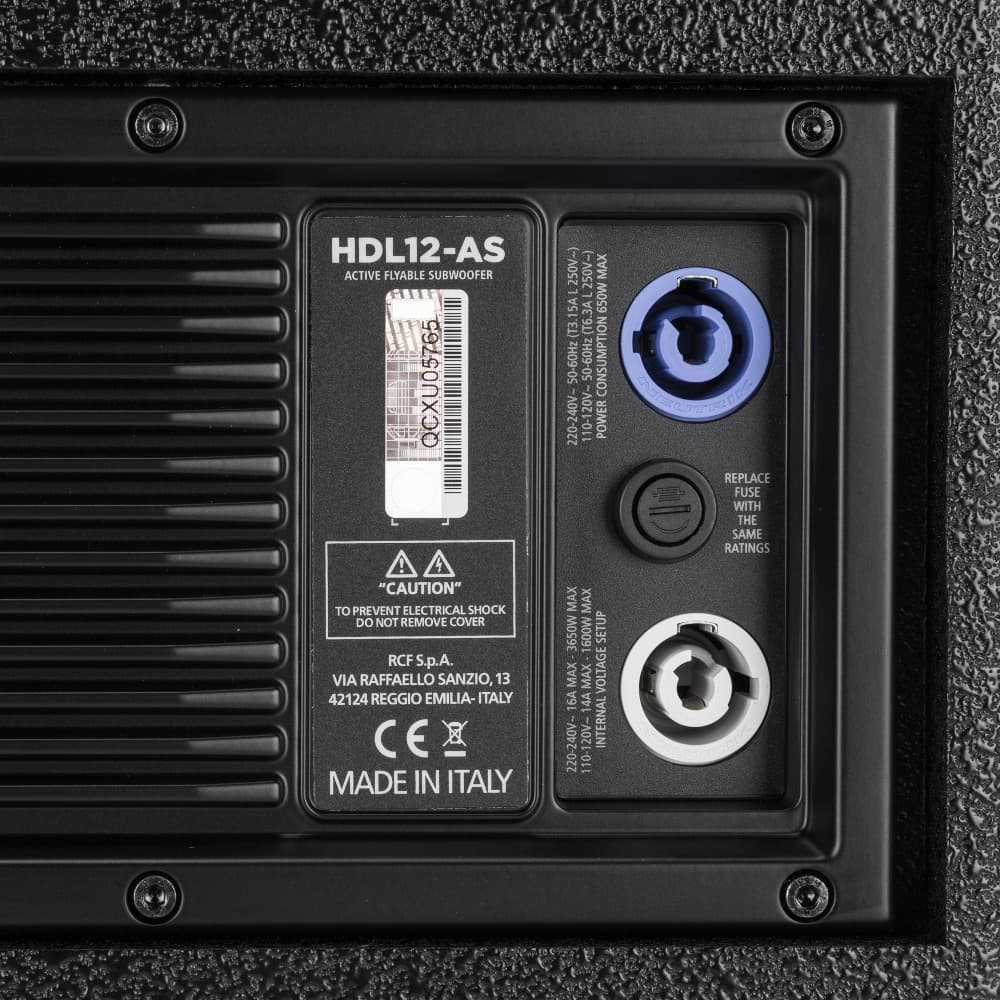

- CONNECTIONS: Powercon IN/OUT
Standard compliance
- CE MARKING: Yes
Physical specifications
- CABINET/CASE MATERIAL: Baltic birch plywood
- HARDWARE: Array fittings, pole
- HANDLES: 2 side
- GRILLE: Steel
- COLOR: Black
Size
- HEIGHT: 379 mm / 14.92 inches
- WIDTH: 470 mm / 18.5 inches
- DEPTH: 508 mm / 20 inches
- WEIGHT: 25 kg / 55.12 lbs
Shipping informations
- PACKAGE HEIGHT: 435 mm / 17.13 inches
- PACKAGE WIDTH: 560 mm / 22.05 inches
- PACKAGE DEPTH: 520 mm / 20.47 inches
- PACKAGE WEIGHT: 28 kg / 61.73 lbs
