Description
The NX 32-A is an active speaker specifically designed to be the everyday tool for rental companies and professional musicians. It’s one of the most flexible speaker for deploying high-quality sound as a stand-alone FOH system or as a satellite (with subwoofer) but either as a stage monitor or a or a front, down or side fill speaker.
- 1400 W 2-way class-D amplifier
- 131 dB SPL Max
- 50 – 20000 Hz Frequency Range
- 90° x 60° constant directivity coverage
- 12″ woofer, 2.5″ voice coil
- Horn loaded 3.0”neodymium c. driver

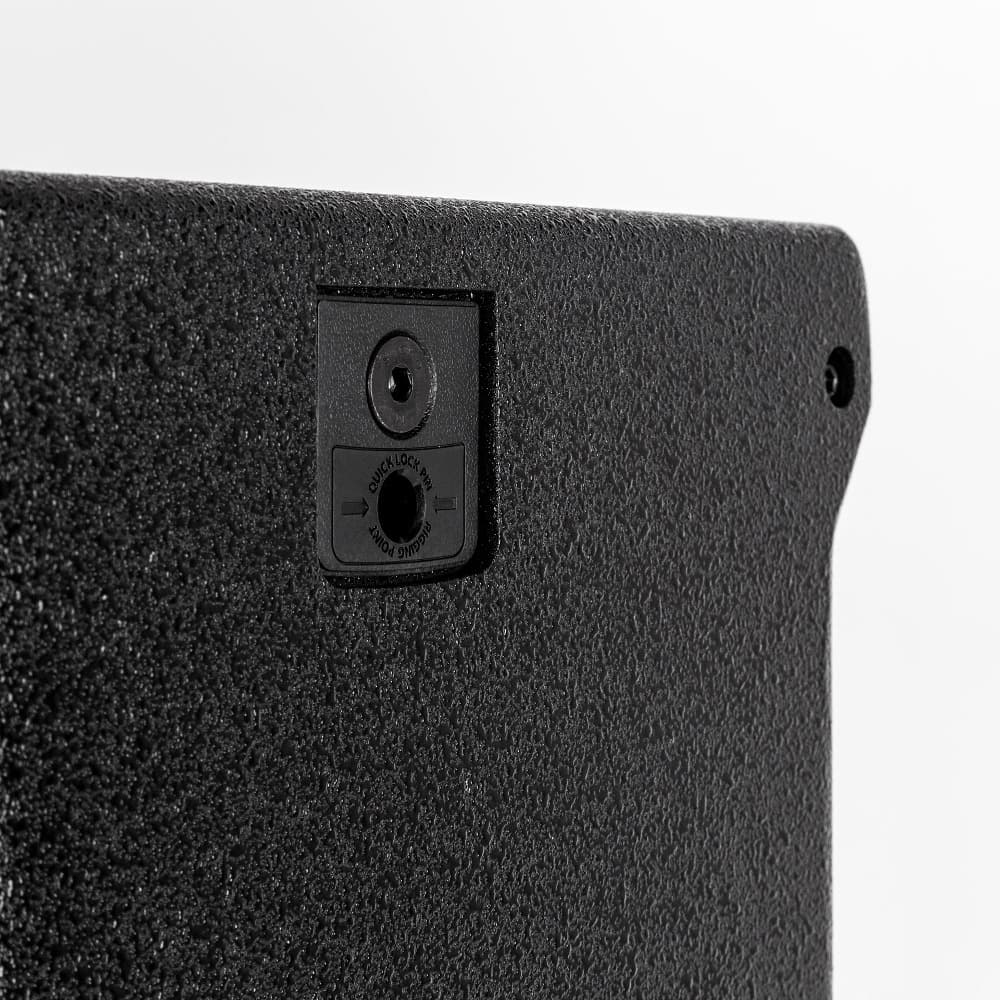

- Multiple rigging points
Acoustical specifications
- FREQUENCY RESPONSE: 50 Hz ÷ 20000 Hz
- MAX SPL @ 1M: 131 dB
- HORIZONTAL COVERAGE ANGLE: 90°
- VERTICAL COVERAGE ANGLE: 60°
Transducers
- COMPRESSION DRIVER: 1.4” neo, 3.0” v.c
- WOOFER: 12”, 2.5” v.c

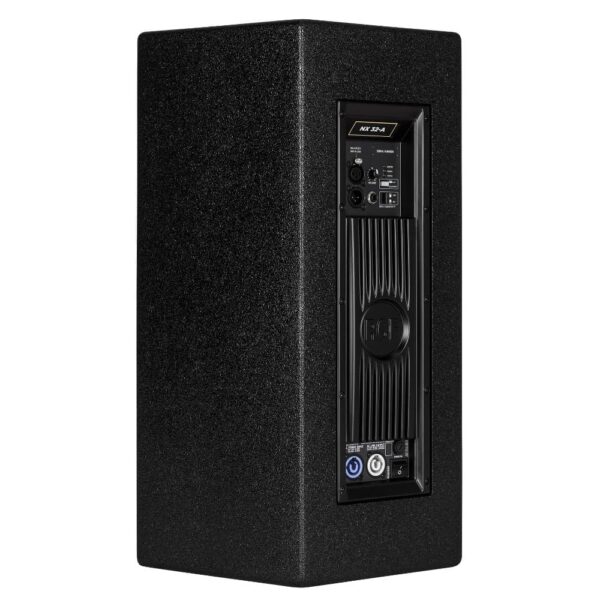

Input/Output section
- INPUT SIGNAL: bal/unbal
- INPUT CONNECTORS: XRL, Jack
- OUTPUT CONNECTORS: XLR
- INPUT SENSITIVITY: -2 dBu/+4 dBu
- MIC. INPUT SENSITIVITY: -32 dBu
Processor section
- CROSSOVER FREQUENCIES: 700 Hz
- PROTECTIONS: Thermal, RMS
- LIMITER: Soft Limiter
- CONTROLS: Volume, boost, Mic/Line
Power section
- TOTAL POWER: 1400 W Peak, 700 W RMS
- HIGH FREQUENCIES: 400 W Peak, 200 W RMS
- LOW FREQUENCIES: 1000 W Peak, 500 W RMS
- COOLING: Convection
- CONNECTIONS: Powercon IN/OUT
Standard compliance
- CE MARKING: Yes
Physical specifications
- CABINET/CASE MATERIAL: Baltic birch plywood
- HARDWARE: 5 x M10, 4 x quick lock
- HANDLES: 2 Side
- POLE MOUNT/CAP: Yes
- GRILLE: Steel
- COLOR: Black
Size
- HEIGHT: 600 mm / 23.62 inches
- WIDTH: 365 mm / 14.37 inches
- DEPTH: 378 mm / 14.88 inches
- WEIGHT: 20.6 kg / 45.42 lbs
Shipping informations
- PACKAGE HEIGHT: 655 mm / 25.79 inches
- PACKAGE WIDTH: 425 mm / 16.73 inches
- PACKAGE DEPTH: 440 mm / 17.32 inches
- PACKAGE WEIGHT: 23.6 kg / 52.03 lbs
