Description

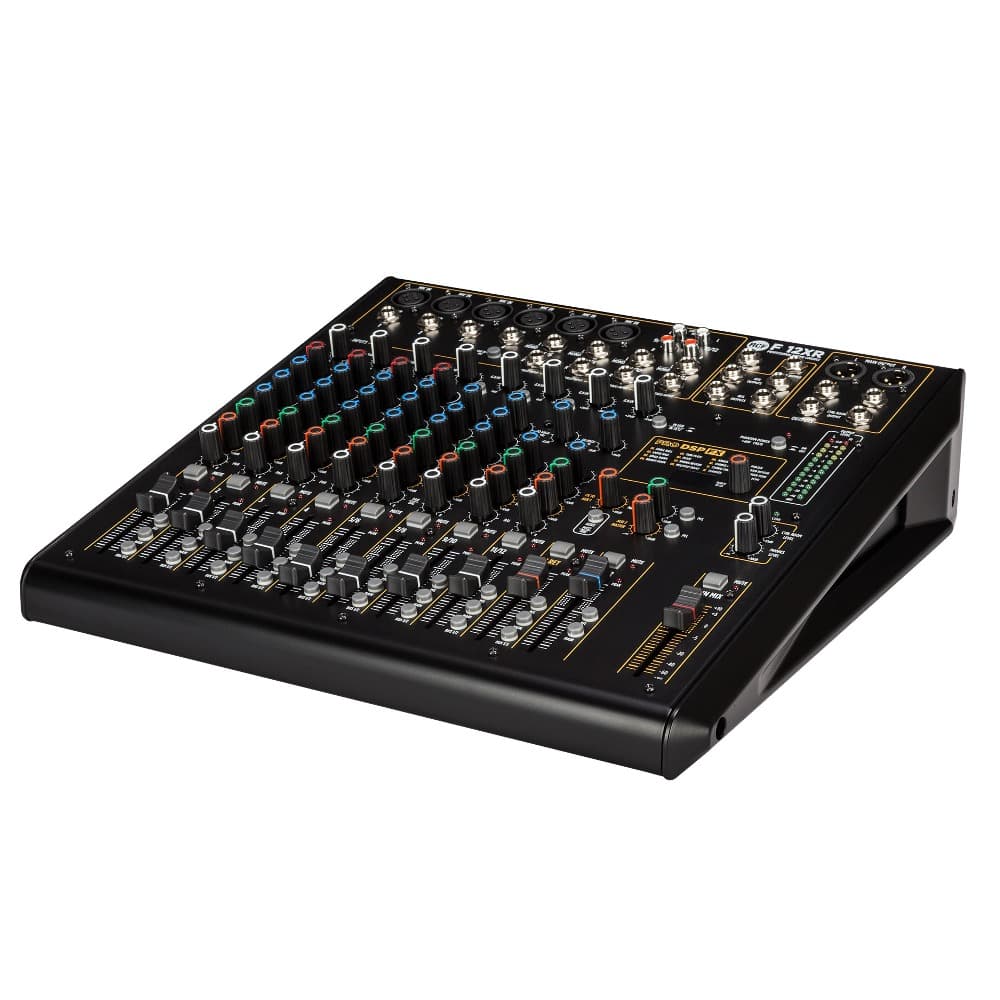

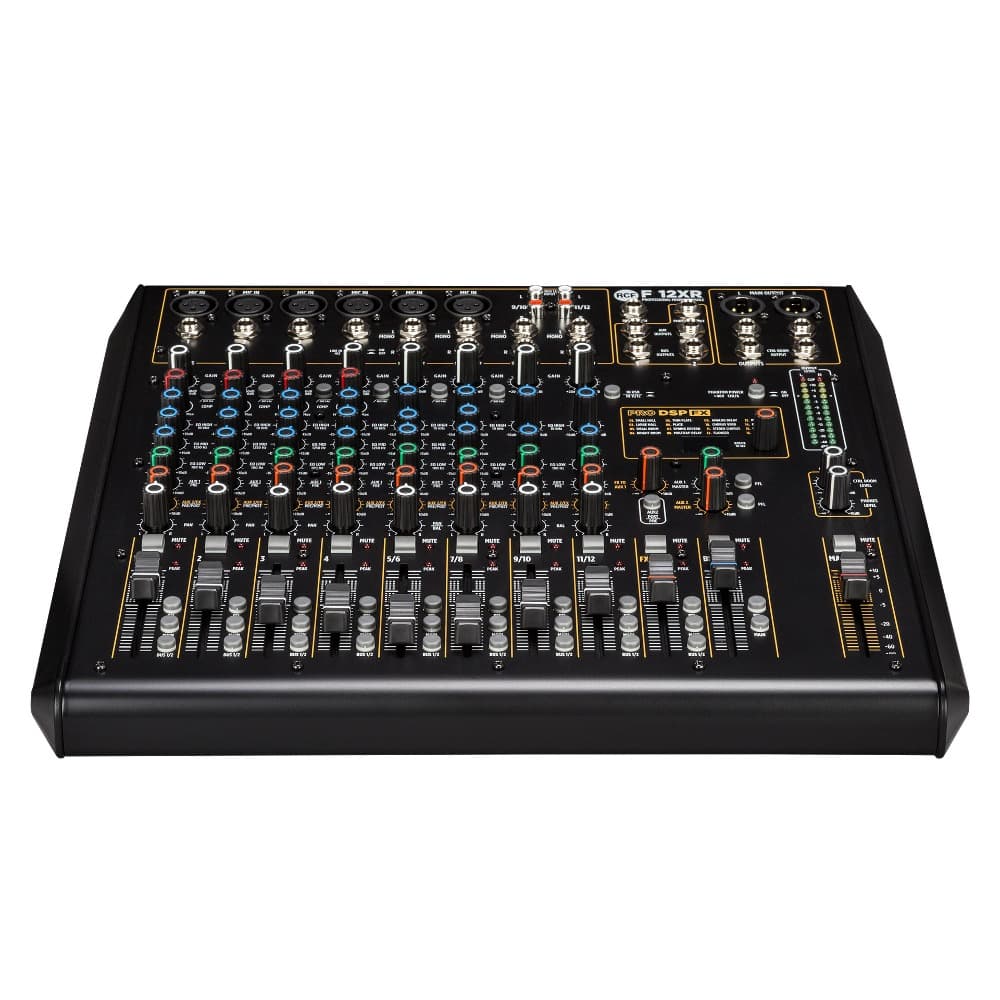

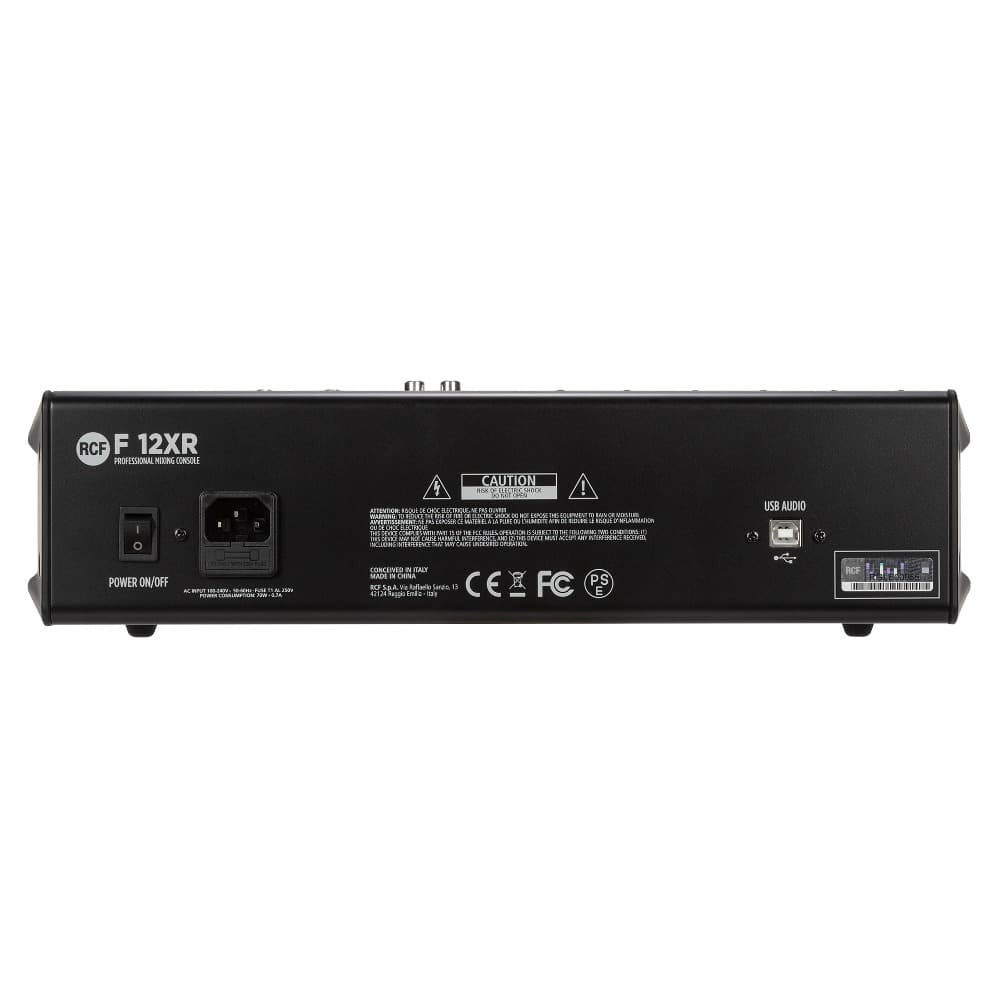

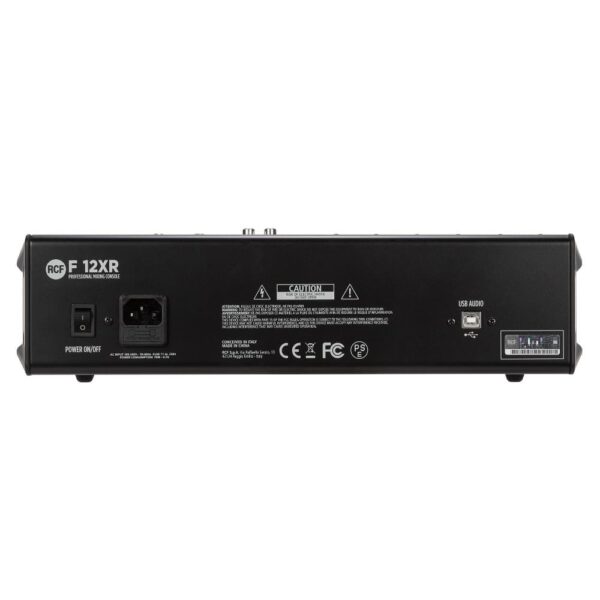

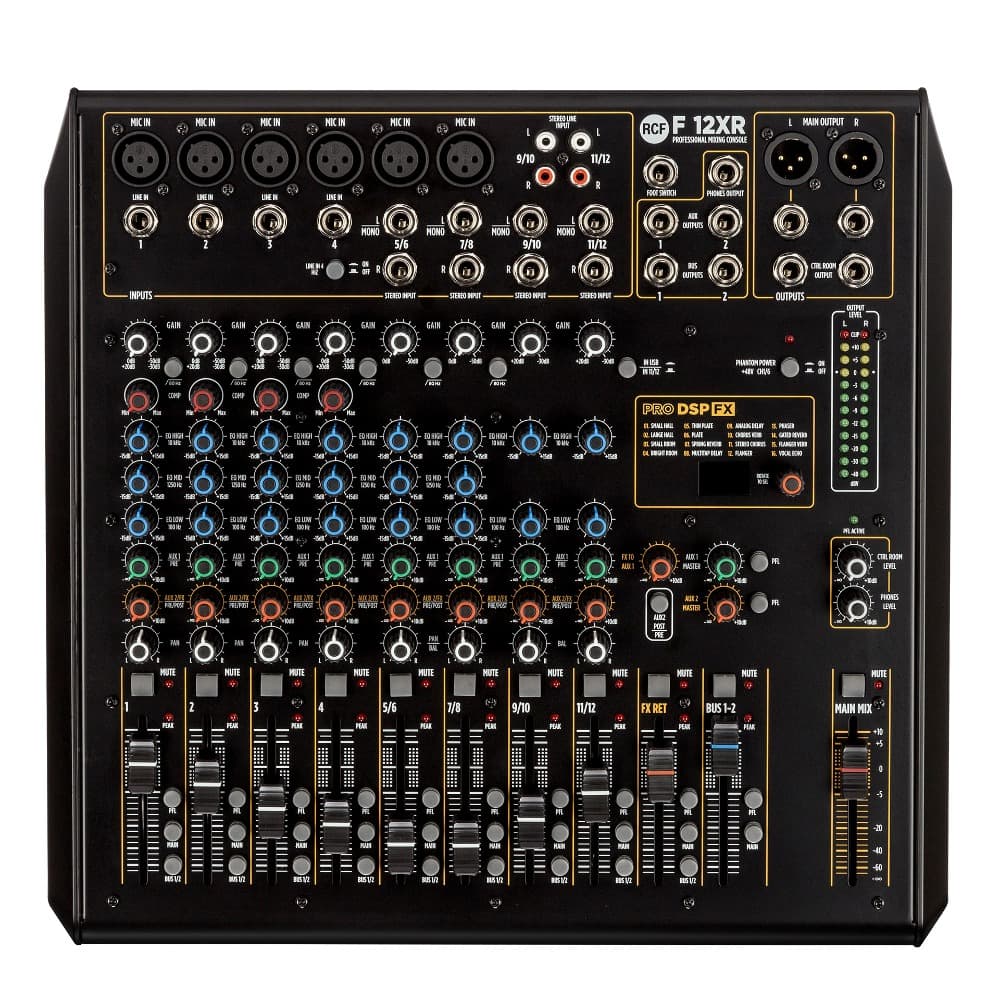

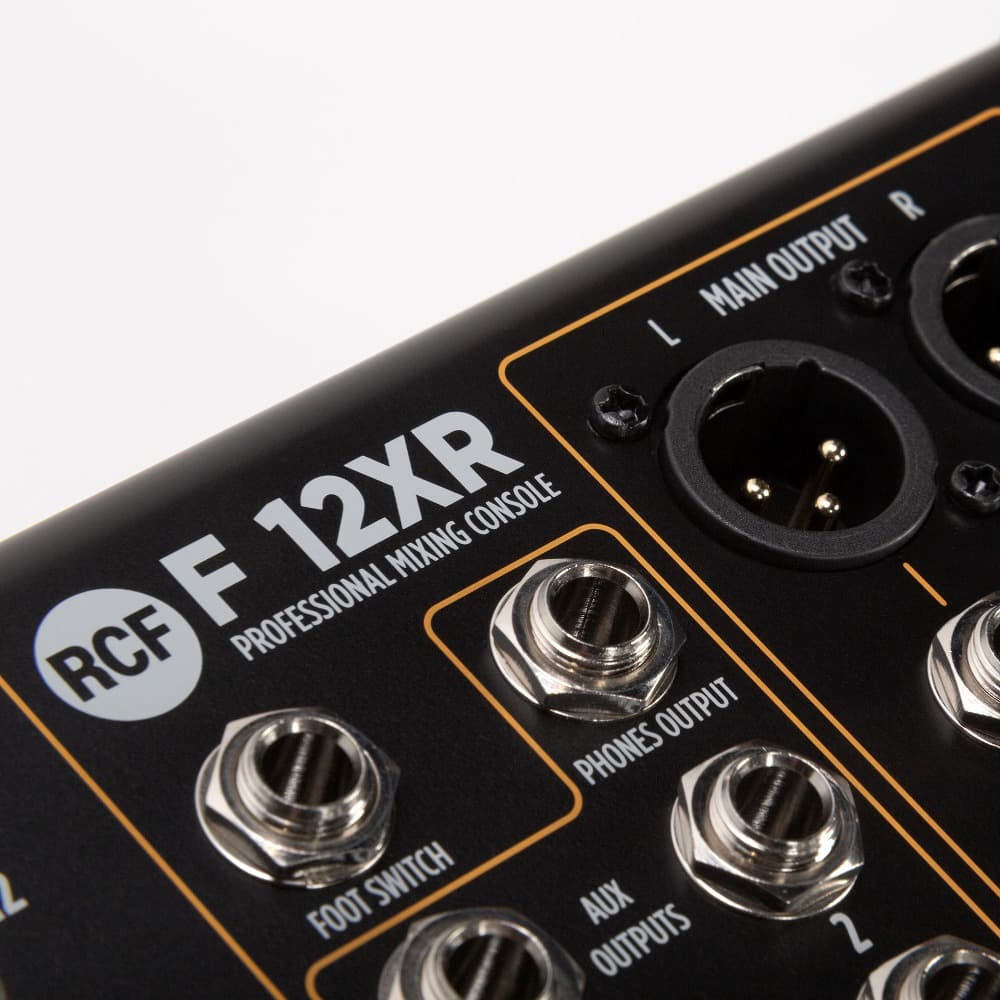

The F 12XR features 6 Mic Preamp Inputs, 4 Mono Line Inputs, 4 Stereo Line Inputs plus multi-FX and Recording via USB port, with balanced +28dB main output (Stereo XLR + TRS) and 4 single control compressors. The Mono channels are provided with 3-band EQ and Stereo with 2-band. The mixer features 16 PRO DSP internal presets and 2 Aux sends (1 pre,1pre/post fader). It also features a stereo output bus and 60mm faders.
- Sturdy Metal Chassis
- PRO DSP FX onboard with 16 presets
- Stereo Recording and Playback via USB port
- Balanced main output audio path from input to output
- 4 single control compressors
- Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
- Robust, compact and attractive design.
- Designed and Engineered in Italy
- Internal Universal Power Supply
Electrical specifications
- FREQUENCY RESPONSE: 20 Hz ÷ 20 kHz
- THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED): <0,02% A-Weighted
- POWER SUPPLY: Internal
- VOLTAGE REQUIREMENTS: 100 V – 240 V
- POWER CONSUMPTION (W): 24 W
Inputs
- GAIN RANGE: 0 dB ÷ -50 dB
- GAIN SELECTION: 20 dB ÷ -30 dB
- HI-Z LINE INPUTS IMPEDANCE (MOHM): 1 Mohm
- HI-Z LINE INPUTS: 1
- INPUT NOISE LEVEL (DBU A-WEIGHTED): -124 dBu A-Weighted
- MIC INPUTS IMPEDANCE (KOHM): 14 kohm
- LINE: 4
- LINE INPUT IMPEDANCE (KOHM): 21 kohm
- LOW CUT: 80 Hz
- MIC: 6
- PHANTOM POWER +48V: Yes
- STEREO LINE: 4
- STEREO LINE GAIN SELECTION: 20 dB ÷ -30 dB
- STEREO LINE INPUT IMPEDANCE: 15 kohm
Outputs
- MAIN MIX: 1
- CONTROL ROOM: Yes
- FX SEND: 1
- AUX SEND: 1
- AUX OUTPUT: 2
- GROUP OUT: 1
- PHONES: 1
Outputs specifications
- MAIN OUT LEVEL (DBU): 28 dBu
- AUX OUT LEVEL (DBU): 28 dBu
- GROUP OUT LEVEL (DBU): 28 dBu
- PHONES OUT IMPEDANCE (OHM): 150 ohm
Compressors
- RCF COMPRESSORS: n° 4 Single Control Compressors on Channels 1 to 4
EQ
- INPUT CHANNELS EQ: 2 Shelving / 1 Generic
- DESCRIPTION: High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ 1,250 kHz Bell Low: +/-15 dB @ 100 Hz Shelving
Auxiliary sends
- AUX: 1 PRE/POST
- FX POST: 1
Internal Effects
- SEND EFFECTS: 1
USB audio
- TYPE: B
- PLAY TRK: 2
- REC TRK: 2
- SUPPORTED SAMPLE RATE (KHZ): 44.1, 48.0 kHz
Other features
- FOOTSWITCH: Yes
Standard compliance
- CE MARKING: Yes
Physical specification
- CABINET/CASE MATERIAL: Metal
- COLOR: Black
Size
- DEPTH: 355 mm / 13.98 inches
- HEIGHT: 97 mm / 3.82 inches
- WEIGHT: 4.5 kg / 9.92 lbs
- WIDTH: 373 mm / 14.69 inches
Shipping informations
- PACKAGE DEPTH: 425 mm / 16.73 inches
- PACKAGE HEIGHT: 140 mm / 5.51 inches
- PACKAGE WEIGHT: 5.5 kg / 12.13 lbs
- PACKAGE WIDTH: 400 mm / 15.75 inches
