Description

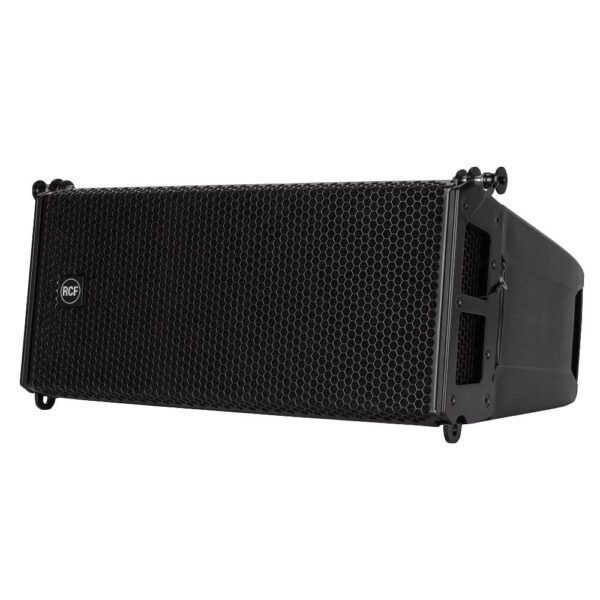

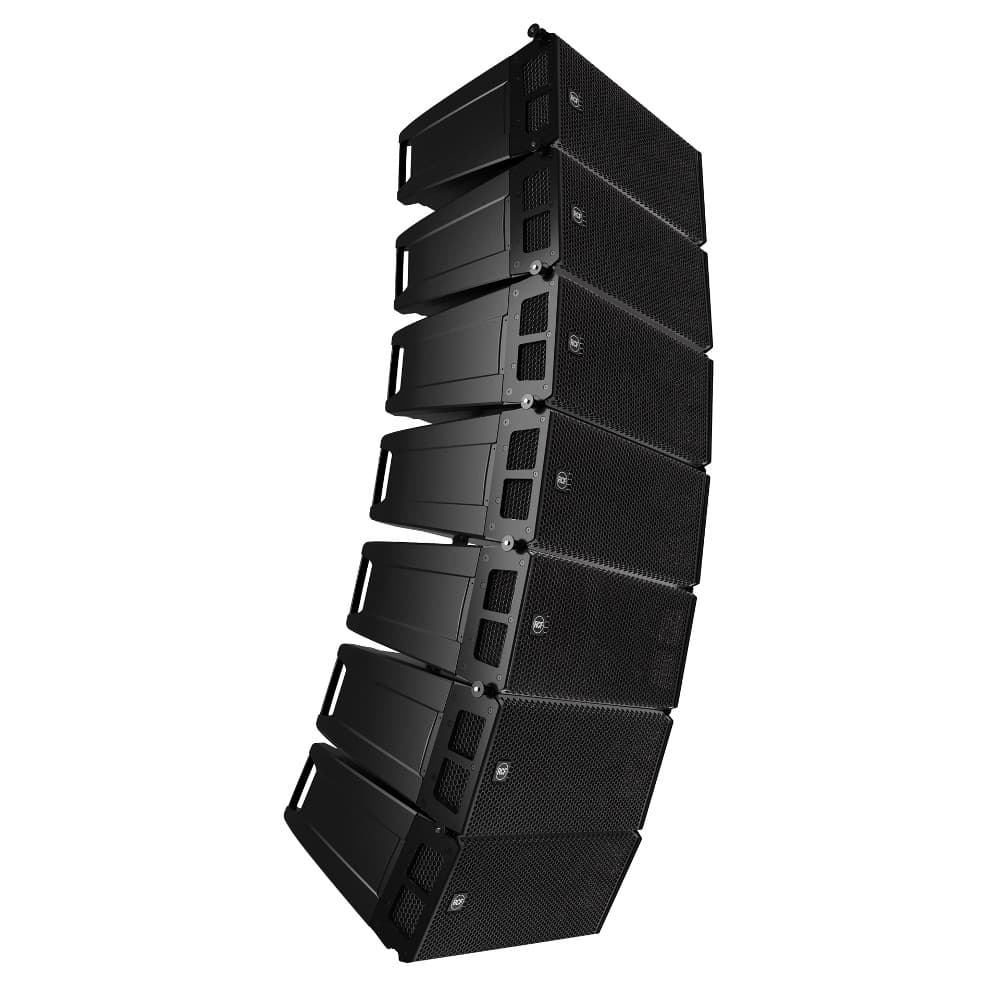

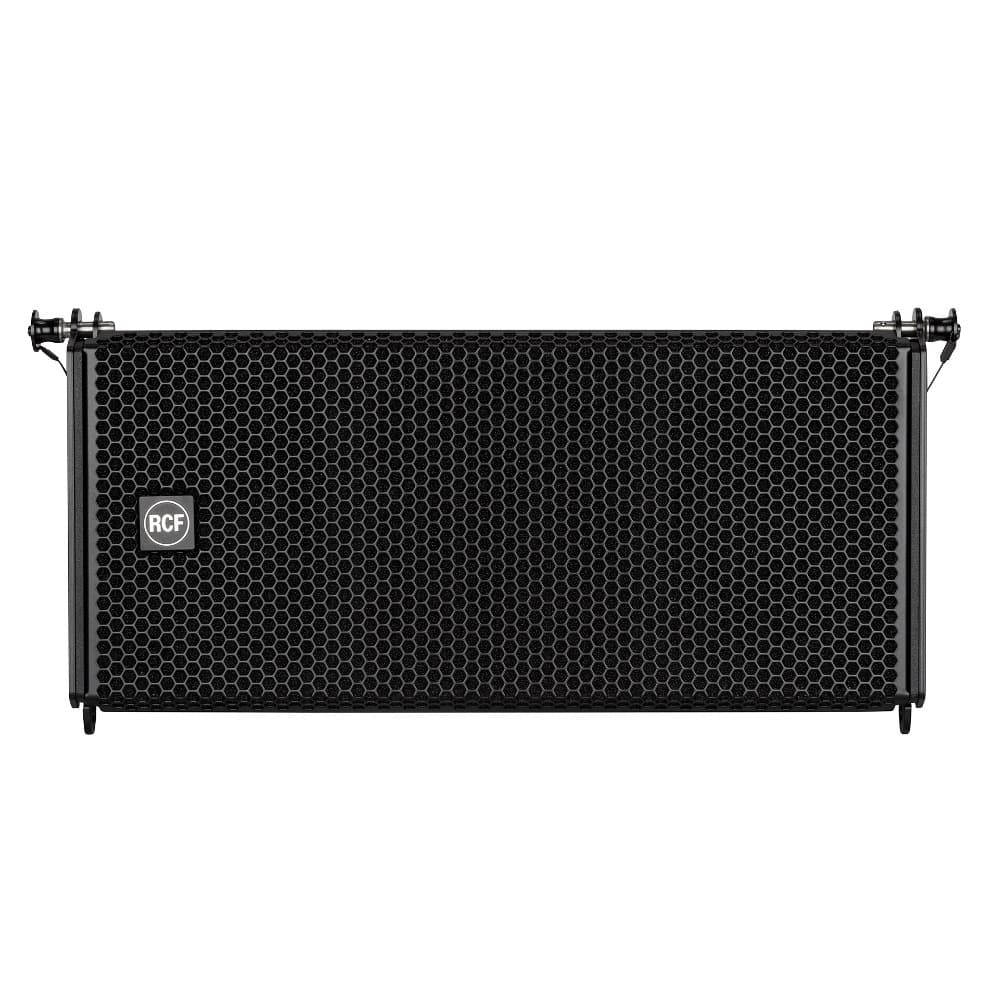

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.
- 1400 W, two-way amplification
- 131 dB max SPL
- 1.7″ voice coil neodymium compression driver
- 2 x high power neodymium 6.0″woofers
- 48 kHz, 32 bit floating point DSP processing
- Symmetrical design
- Extremely low weight
- FiRPHASE processing
Acoustical specifications
- FREQUENCY RESPONSE: 65 Hz ÷ 20000 Hz
- MAX SPL @ 1M: 131 dB
- HORIZONTAL COVERAGE ANGLE: 100°
- VERTICAL COVERAGE ANGLE: 10°

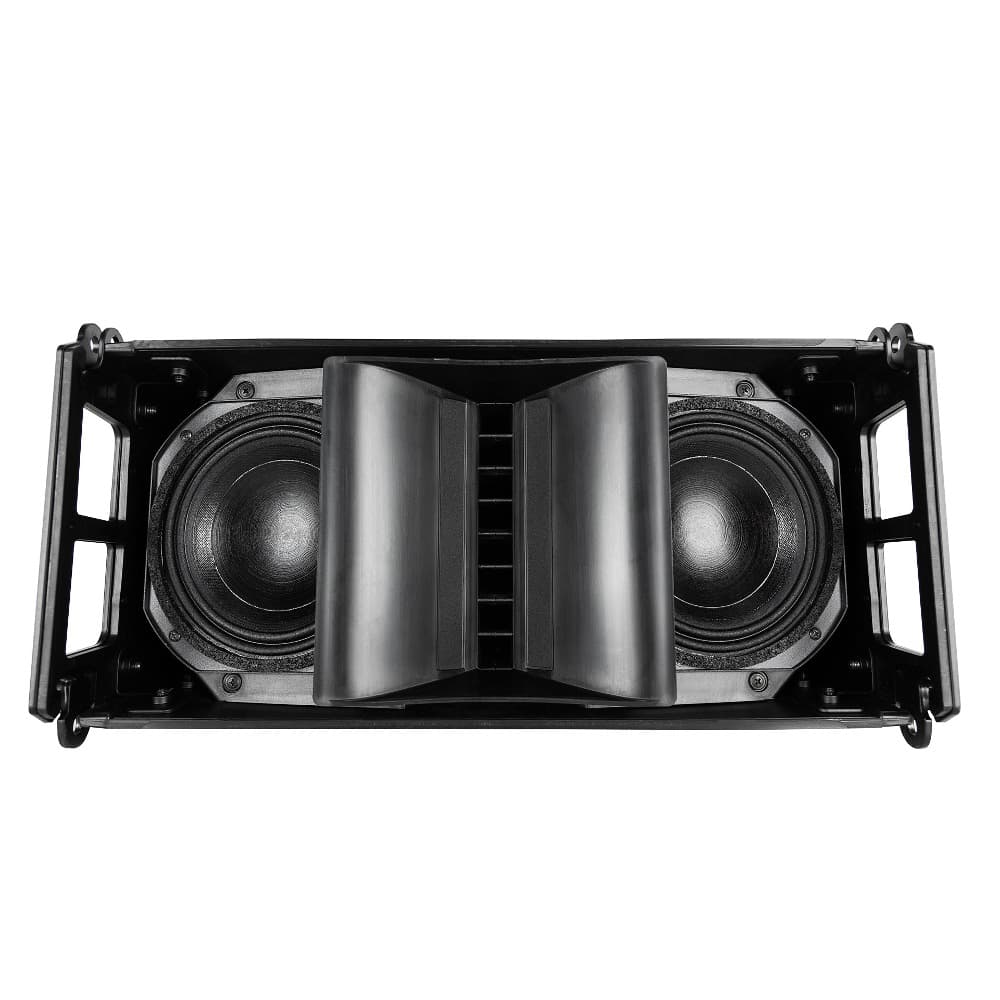

Transducers
- COMPRESSION DRIVER: 1 x 1.0” neo, 1.75” v.c
- WOOFER: 2 x 6.0” neo, 2.0” v.c

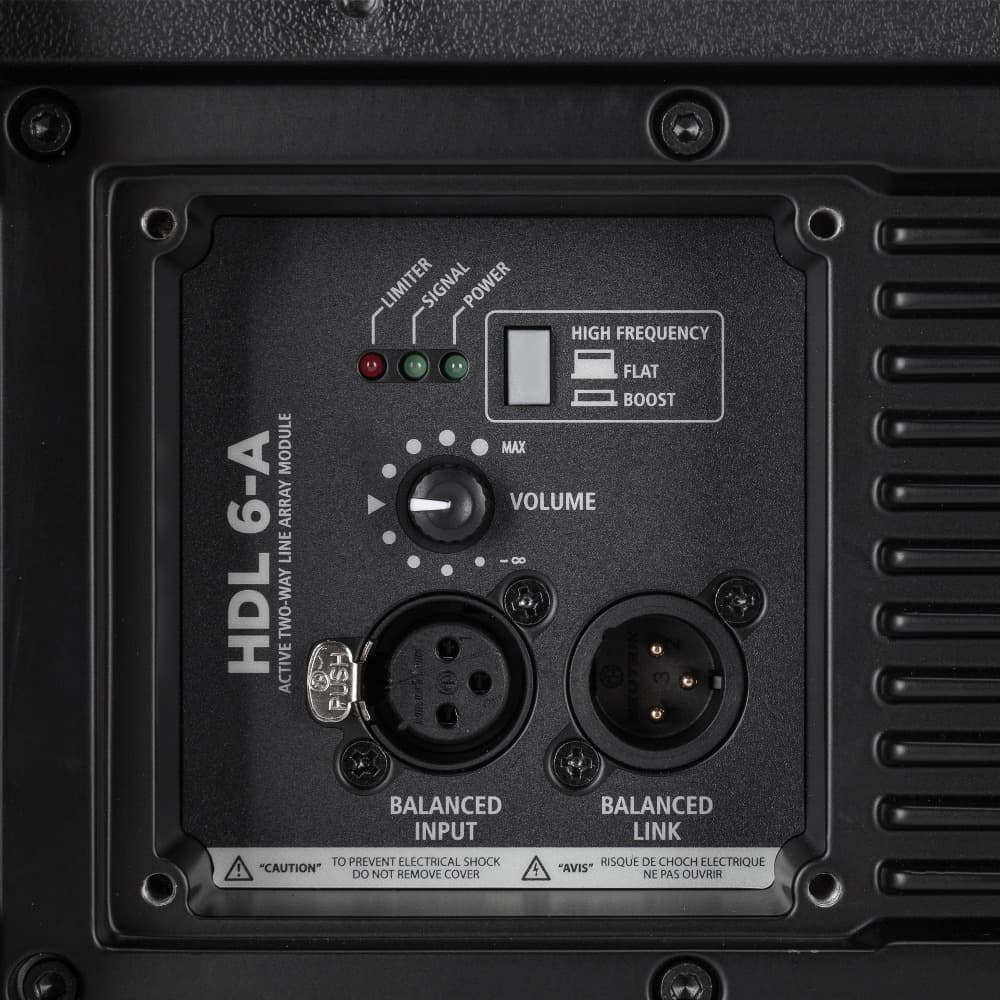

Input/Output section
- INPUT SIGNAL: bal/unbal
- INPUT CONNECTORS: XLR
- OUTPUT CONNECTORS: XLR
- INPUT SENSITIVITY: +4 dBu
Processor section
- CROSSOVER FREQUENCIES: 900 Hz
- PROTECTIONS: Thermal, RMS
- LIMITER: Soft Limiter
- CONTROLS: HF correction
Power section
- TOTAL POWER: 1400 W Peak, 700 W RMS
- HIGH FREQUENCIES: 400 W Peak, 200 W RMS
- LOW FREQUENCIES: 1000 W Peak, 500 W RMS
- COOLING: Convection

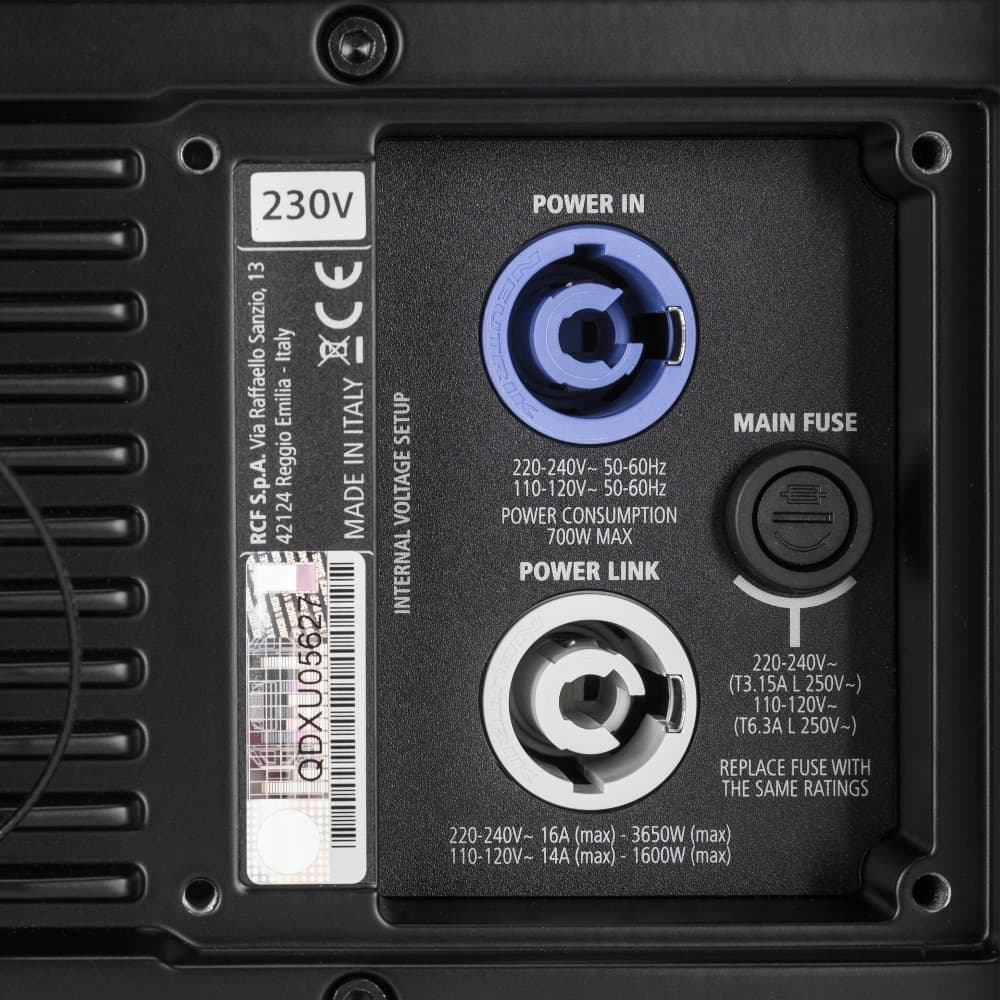

- CONNECTIONS: Powercon IN/OUT
Standard compliance
- CE MARKING: Yes
Physical specifications
- CABINET/CASE MATERIAL: PP Composite
- HARDWARE: Array fittings

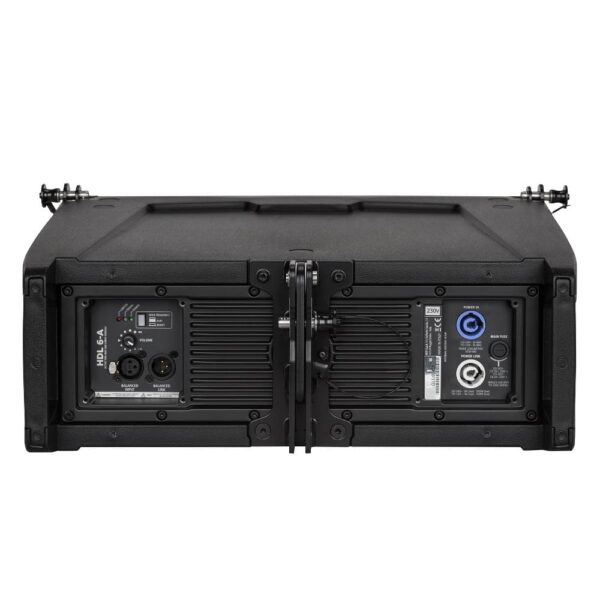

- HANDLES: 2 Back
- GRILLE: Steel
- COLOR: Black, White
Size
- HEIGHT: 237 mm / 9.33 inches
- WIDTH: 470 mm / 18.5 inches
- DEPTH: 377 mm / 14.84 inches
- WEIGHT: 11.6 kg / 25.57 lbs
Shipping informations
- PACKAGE HEIGHT: 260 mm / 10.24 inches
- PACKAGE WIDTH: 550 mm / 21.65 inches
- PACKAGE DEPTH: 425 mm / 16.73 inches
- PACKAGE WEIGHT: 13 kg / 28.66 lbs
