Description
M 20X is a fully recallable mixer, with 16 remote controlled preamps and 11 motorized faders. Despite its dimensions, the M 20X packs a whole suite of capabilities, such as high-profile preamplifiers, top of class DSP with studio-quality processing, WiFi remote control and a comprehensive set of multitrack recording and playback functions. The mixer offers a total of 20 analog inputs and 14 output channels, between the balanced analog outputs and the AES/EBU digital output.
- 20 analog inputs, 16 mic preamps and 4 line inputs
- 12 balanced outputs + phones
- 20-tracks sd card play/rec
- 24 x 24 CH USB Audio Interface (24-bit/48 kHz)
- 11 motorized Faders
- Smooth User Interface with 5” Touchscreen
- AES Digital Output

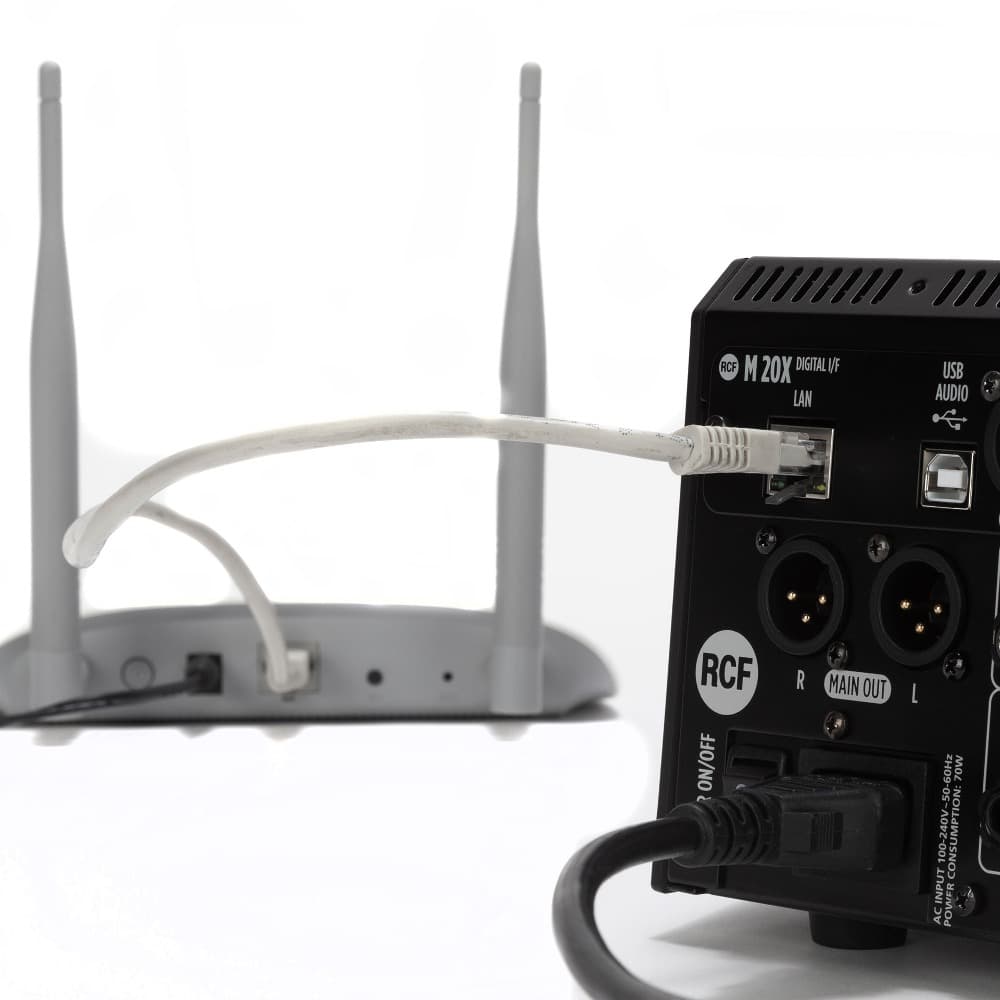

- LAN / WiFi Remote Control
Electronic specifications
- FREQUENCY RESPONSE: 20 Hz ÷ 20 kHz
- THD+N, 0DB GAIN, 0DBU OUT: < 0.02% A-Weighted
- DYNAMC RANGE, ANALOG TO ANALOG: 109 dB A-Weighted
- RESIDUAL NOISE LEVEL, MAIN OUT, MUTED: -85 dBu A-Weighted
Inputs
- MIC (BALANCED XLR): 8
- REMOTE CONTROLLED STORABLE GAIN: Yes
- GAIN RANGE: 0 dB ÷ 60 dB
- MIC INPUT IMPEDANCE: 3.3 kohm
- MAXIMUM INPUT LEVEL: 18 dBu
- PHANTOM POWER +48V: Yes
- MIC/LINE (XLR/TRS COMBO): 8
- REMOTE CONTROLLED STORABLE GAIN: Yes
- GAIN RANGE: 0 dB ÷ 60 dB
- GAIN RANGE: 0 dB ÷ 60 dB
- GAIN RANGE: 0 dB ÷ 60 dB
- GAIN RANGE: 0 dB ÷ 60 dB
- GAIN RANGE: 0 dB ÷ 60 dB
- GAIN RANGE: 0 dB ÷ 60 dB
- GAIN RANGE: 0 dB ÷ 60 dB
- GAIN RANGE: 0 dB ÷ 60 dB
- GAIN RANGE: 0 dB ÷ 60 dB
- GAIN RANGE: 0 dB ÷ 60 dB
- GAIN RANGE: 0 dB ÷ 60 dB
- MIC INPUTS IMPEDANCE (XLR): 3.3 kohm
- LINE INPUTS IMPEDANCE (TRS): 12.8 kohm
- MAXIMUM INPUT LEVEL (XLR): 18 dBu
- MAXIMUM INPUT LEVEL (TRS): 29 dBu
- PHANTOM POWER +48V: Yes
- BALANCED LINE (1/4 TRS): 2
- GAIN RANGE: 0 dB ÷ dB
- LINE INPUTS IMPEDANCE (TRS): 18 kohm
- MAXIMUM INPUT LEVEL (TRS): 18 dBu
- STEREO LINE (3,5MM JACK): 1
- GAIN RANGE: 0 dB ÷ dB
- LINE INPUTS IMPEDANCE (TRS): 15 kohm
- MAXIMUM INPUT LEVEL (TRS): 18 dBu
Outputs
- MAIN OUT (BALANCED XLR): 2
- OUTPUT IMPEDANCE: 50 ohm
- MAXIMUM OUTPUT LEVEL: 24 dBu
- MIX OUT (BALANCED XLR): 8
- MIX OUT (1/4 TRS): 2
- OUTPUT IMPEDANCE: 150 ohm
- MAXIMUM OUTPUT LEVEL: 24 dBu
- PHONES (6,8MM JACK STEREO LINE): 1
- OUTPUT IMPEDANCE: 50 ohm
- MAXIMUM OUTPUT LEVEL: 18 dBu
- AES3 (XLR): 1
Processing
- SIGNAL PROCESSING: 32 Bit Floating Point
- HEADROOM: 20 dB
- A/D-D/A CONVERSION: 24 Bit @ 48.0 kHz
- BUSS: 16
Input processing
- SOURCE SELECTOR: Yes
- POLARITY: Yes
- HIGH PASS FILTER: Yes
- DELAY: 100 ms
- GATE: with Gain Reduction meter
- PEQ: 4 Band
- COMPRESSOR / DE-ESSER ON INPUTS: 1 ÷ 16 (with Gain Reduction meter)
Output processing
- DELAY: 250 ms
- GEQ: 30 Band
- PEQ: 8 Band
- COMPRESSOR / LIMITER: with Gain Reduction meter
- MIX OUT: [1 ÷ 8]
- DELAY: 250 ms
- PEQ: 8 Band
- COMPRESSOR / LIMITER: with Gain Reduction meter
- REAL TIME ANALYZER: Yes
- DELAY: 250 ms
Effects
- INTERNAL FX: 4
- FX1: Reverb (Hall, Room, Plate, Ambience)
- FX2: Reverb (Hall, Room, Plate, Ambience)
- FX3: Delay (Stereo, Modern, Vintage, Dual, ER)
- FX4: Modulation (Chorus, Flanger, Tremolo)
Multitrack
- SD MULTITRACK FORMAT: WAV, 24Bit, 48.0kHz
- NUMBER OF TRACKS: 20
- A/D-D/A CONVERSION: 24 Bit @ 48.0 kHz
- RECORDING: 20 Channels
- PLAYBACK: 20 Channels
- USB AUDIO INTERFACE FORMAT: WAV, 24Bit, 48.0kHz
- A/D-D/A CONVERSION: 24 Bit @ 48.0 kHz
- UPSTREAM: 24 Channels
- DOWNSTREAM: 24 Channels
USB drive play/rec
- USB DRIVE RECORDING: 2 Channels @ WAV, 24Bit, 48.0kHz
- A/D-D/A CONVERSION: 24 Bit @ 48.0 kHz
- A/D-D/A CONVERSION: 16 Bit @ 44.1, 48.0, 88.2, 96.0 kHz
- USB DRIVE PLAYBACK: 2 Channels @ WAV/MP3/AIFF, 16Bit, 44.1, 48.0, 88.2, 96.0kHz
Control interfaces
- LAN PORT: 1000-BaseTX for remote control
- DESCRIPTION: MIDI interface, WiFi dongle (must be en
- USB PORTS: 2 Type A
Electrical specifications
- POWER SUPPLY: Internal
- VOLTAGE REQUIREMENTS: 100 V – 240 V
- POWER CONSUMPTION (MAX) (W): 70 W
Standard compliance
- CE MARKING: Yes
Physical specifications
- CABINET/CASE MATERIAL: Metal
Size
- WEIGHT: 7.9 kg / 17.42 lbs
- WIDTH: 388 mm / 15.28 inches
- HEIGHT: 131 mm / 5.16 inches
- DEPTH: 428 mm / 16.85 inches
Shipping informations
- PACKAGE HEIGHT: 215 mm / 8.46 inches
- PACKAGE WEIGHT: 9 kg / 19.84 lbs
- PACKAGE DEPTH: 506 mm / 19.92 inches
- PACKAGE WIDTH: 580 mm / 22.83 inches
