Description
The SUB 8006-AS is the largest and most powerful active sub woofer in the professional series. Featuring two 18” transducers, with 4” inside/outside voice coils, this cabinet is designed to delivery a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.
- 5000 Watt Peak power – 2500 Watt RMS
- 137 dB max SPL
- 30 Hz – 120 Hz frequency response
- 2 x 18″ Woofer
- DSP controlled Input section with selectable presets
- Delay control
- Integrated mechanics for multiple configuration with HDL 20-A
- Baltic birch tour grade cabinet
Acoustical specifications
- FREQUENCY RESPONSE: 30 Hz ÷ 120 Hz
- MAX SPL @ 1M: 137 dB
Transducers
- WOOFER: 2 x 18”, 4.0” v.c
Input/Output section
- INPUT SIGNAL: bal/unbal
- INPUT CONNECTORS: XLR
- OUTPUT CONNECTORS: XLR
- INPUT SENSITIVITY: -2 dBu/+4 dBu
Processor section
- HI-PASS FREQUENCIES: 100 Hz
- LOW-PASS FREQUENCIES: 80 Hz
- PROTECTIONS: Thermal, RMS
- LIMITER: Fast Limiter

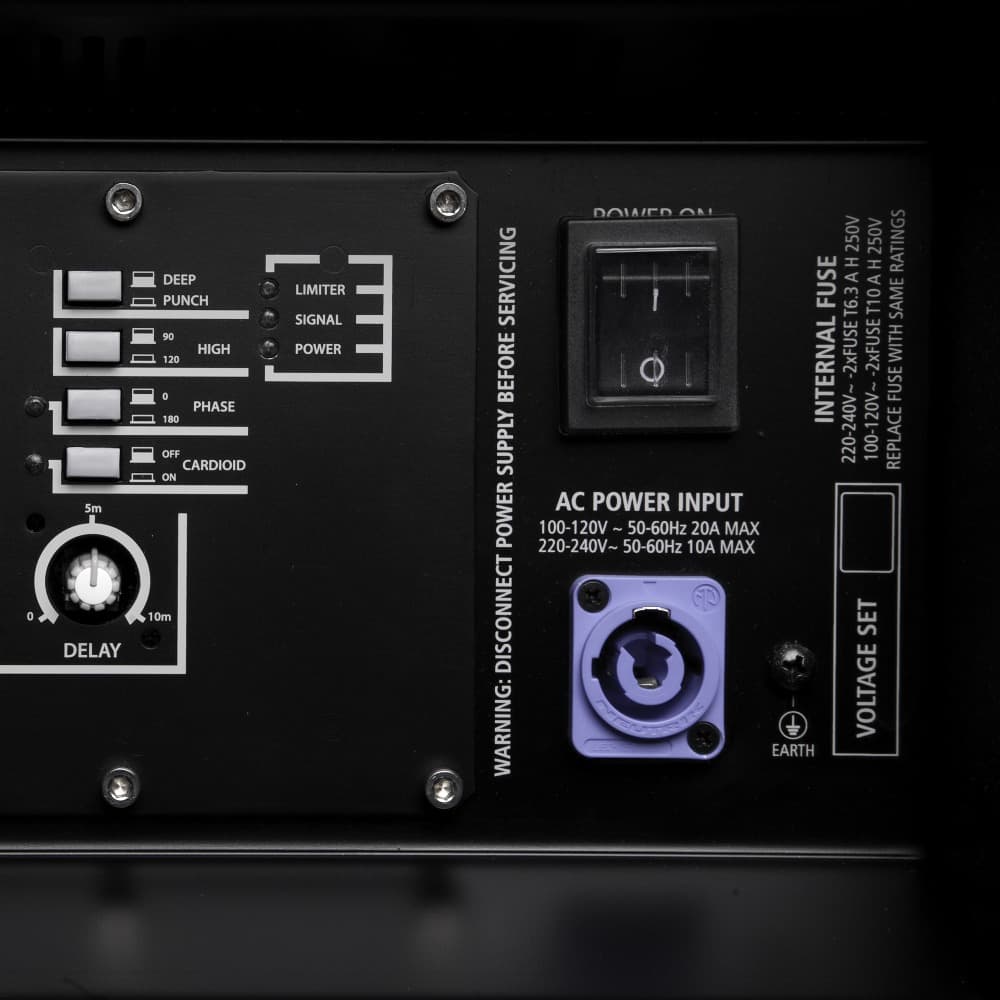

- CONTROLS: Xover, Phase switch, Depp/Punch, Output Delay Settings, Cardioi
Power section
- TOTAL POWER: 5000 W Peak, 2500 W RMS
- LOW FREQUENCIES: 5000 W Peak, 2500 W RMS
- COOLING: Convection
- CONNECTIONS: Powercon IN/OUT
Standard compliance
- CE MARKING: Yes
Physical specifications
- CABINET/CASE MATERIAL: Baltic birch plywood
- HARDWARE: Mounting points
- HANDLES: 4 side
- GRILLE: Steel
- COLOR: Black
Size
- HEIGHT: 709 mm / 27.91 inches
- WIDTH: 1109 mm / 43.66 inches
- DEPTH: 700 mm / 27.56 inches
- WEIGHT: 96.4 kg / 212.53 lbs
Shipping informations
- PACKAGE HEIGHT: 763 mm / 30.04 inches
- PACKAGE WIDTH: 1156 mm / 45.51 inches
- PACKAGE DEPTH: 753 mm / 29.65 inches
- PACKAGE WEIGHT: 109 kg / 240.3 lbs
